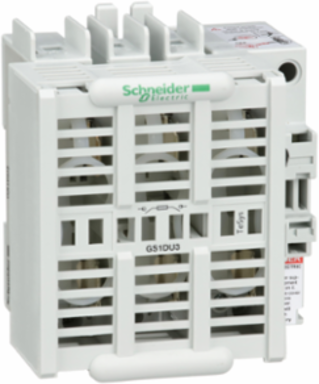

Schneider Electric GS1DU3 TeSys GS Switch Disconnector Fuse, 3P, 30A, Fuse Size J, 105 mm Width
- MPN: GS1DU3
- PPN: SCH-GS1DU3
CAD
$276.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Features
- Featuring a highly compact footprint, this 30A non-fusible disconnect switch is engineered to provide a reliable "visible break" for motor and power circuits without hogging valuable DIN-rail real estate. Its modular architecture allows for seamless integration into high-density industrial enclosures, ensuring you can meet strict safety isolation requirements even in tight retrofits.
- Designed to handle demanding electrical environments, the GS1DU3 offers a high short circuit withstand rating when paired with appropriate upstream protection. This ensures the switch remains operational and safe during transient fault conditions, protecting your downstream automation hardware and sensitive PLC components from catastrophic thermal damage.
- This versatile switch supports multiple mounting configurations, including direct-mount handles or extended shaft kits for through-the-door operation. This flexibility allows facility engineers to design an ergonomic and code-compliant lockout/tagout (LOTO) station that matches the specific depth and layout of the NEMA or IP-rated enclosure.
- Equipped with IP20-rated, finger-safe terminal shrouds, this disconnect switch minimizes the risk of accidental contact with live energized parts during routine inspections. This proactive safety design helps your facility comply with NFPA 70E and OSHA requirements, reducing the likelihood of arc flash incidents and ensuring a safer environment for maintenance personnel.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Depth | 99 mm |
|---|
Physical Attributes
| Fuse Size | J |
|---|
Complementary Attributes
| Rated Operational Power In W | 15 kW 400 V18.5 kW 500 V25 kW 690 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Support | plate, rail |
| Poles Description | 3P |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Service Catalog Item | Finished good |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2003008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | GS1D |
| Design | compact |
| Device Short Name | GS1D |
| Energy Efficiency Optimized | False |
| Fuse Type | UL |
| Network Frequency | 50/60 Hz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | switch-disconnector-fuse |
| Range | TeSys |
| Sustainable Packaging | No |
| Type Of Operating Handle | external frontal |
| Thermal Current 3 | 30 A |
| Height Nominal | 116 mm |
| [Ie] Rated Operational Current | 30 A |
| [Ui] Rated Insulation Voltage | 690 V |
| Connections - Terminals | power circuit: lugs-ring terminals 2-6 mm² |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Network Type | AC, DC |
| Certificate Agency | LOVAG, LROS (Lloyds register of shipping), ASEFA |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 3 NO |
| Device Application | protection |
| Electrical Durability | 6000 cycles |
| Fire Resistance | 960 °C body IEC 60695-2-1 |
| Mechanical Durability | 10000 cycles |
| Number Of Poles | 3P |
| Product Name | TeSys GS |
| Protected Poles Description | 3t |
| Returnability | Yes |
| Tightening Torque | power circuit 3-3 N.m |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2003008EN |
| Width Nominal | 105 mm |
| [Ith] Conventional Free Air Thermal Current | 30 A (at 40 °C) |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Short-circuit Withstand | 5.5 kA |
| Package Weight(Lbs) | 652.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -40-80 °C, -40-80 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2003008EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2003008EN |
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2003008EN |
| Ip Degree Of Protection | IP20 IEC 60529 with terminal cover) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | switch-disconnector-fuse |
|---|
ETIM
| ETIM 8 | EC001040 |
|---|
| ETIM 9 | EC001040 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
