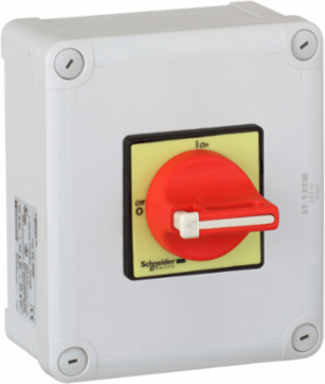

Schneider Electric VC1GUN TeSys Enclosed Emergency Stop Switch Disconnector, 20A, IP65, 3 Poles
- MPN: VC1GUN
- PPN: SCH-VC1GUN
CAD
$183.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VC1GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 10HP@600V. It provides an IP65 / NEMA type 12 enclosure, V1 Vario switch disconnector and red & yellow operator. VC1GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 10HP@600V. It includes a V1 Vario switch disconnector rated 20A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V1 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Features
- Housed in a high-performance non-metallic enclosure, the VC1GUN is rated for both NEMA 12 and IP65 ingress protection, making it impervious to lint, dust, and splashing water. This robust sealing ensures reliable motor disconnection in harsh manufacturing plants or food processing facilities where environmental contaminants would cause standard switches to fail.
- Featuring a high-contrast red rotary handle and a bright yellow front plate, this 3-pole TeSys Vario switch is designed for immediate identification during an emergency stop. The bold "0-I" markings and intuitive mechanical action allow operators to kill power instantly, meeting strict workplace safety protocols and reducing the risk of machinery-related accidents.
- For maximum personnel safety during maintenance, the rotary handle is designed to accept up to three individual padlocks in the "OFF" position. This integrated security feature prevents unauthorized or accidental restarts of connected 600V equipment, ensuring your facility remains in full compliance with OSHA and local safety regulations.
- Engineered for demanding applications, this switch-disconnector is rated for 20A at 600V AC and can handle motor loads up to 10 hp at 480/600V. This high-capacity performance level ensures the internal Vario V1 switch body can manage the high inrush currents typical of industrial motors without welding contacts or degrading over time.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth132 mm
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Power In Hp
- 5 hp 240 V, UL10 hp 480 V, UL, 10 hp 600 V, UL
Rated Operational Power In W11 kW 400 V AC-23)7.5 kW 400 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Making Capacity
- 320 A 400 V AC-21A, 320 A 400 V AC-22A, 320 A 400 V AC-23A
- [Ithe] Conventional Enclosed Thermal Current
- 25 A, 25.0 A IEC 690 V, 20 A UL 600 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09743338386300768, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.07906756912597865
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 13 kg CO2 eq., 13.432378470046519
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Base Dimension
- 60 x 60 mm
- Control Type
- rotary handle
- Electrical Durability
- 100000 cycles AC-2130000 cycles DC-1...5
- Fire Resistance
- 960 °C IEC 60595-2-1
- Marking
- 0 - 1
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
- Performance Level
- high performance
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 17 kg CO2 eq.
- Handle Color
- red
- Rated Thermal Current
- 25 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential In %
- 20
- Width Nominal
- 121 mm
- [Icw] Rated Short-time Withstand Current
- 384 A 400 V 1 s
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Connections - Terminals
- screw clamp terminals 10-10 mm² solid - with cable endscrew clamp terminals 6-6 mm² flexible
- Package Weight(Lbs)
- 654.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA C22.2 No 14, IEC 60204, UL 508, IEC 60947-4-1
Rated Conditional Short-circuit Current10 kA 400 V 35 A aM, 10 kA 400 V 35 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0940306052987434, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.629883768507865
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codeenclosed switch disconnector
Device Short NameVC-GUN
Environmental Characteristicstandard environment
Intermittent Duty Class30
Mechanical Durability100000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeenclosed emergency stop switch disconnector
RangeTeSys
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torque2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Coloryellow
Pep CodeENVPEP2211019EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal164 mm
[Icm] Rated Short-circuit Making Capacity1 kA 400 V at Ipeak
[Ie] Rated Operational Current21.8 A AC-23A)400 V
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 17.332793796842115
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 12
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211019EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2211019EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosed emergency stop switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
