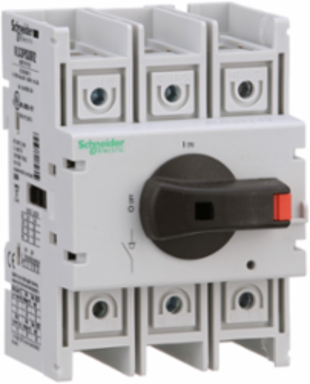

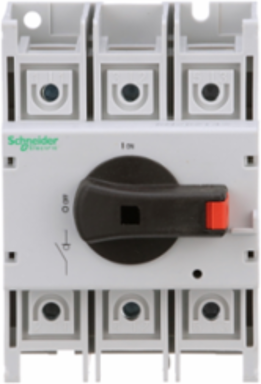

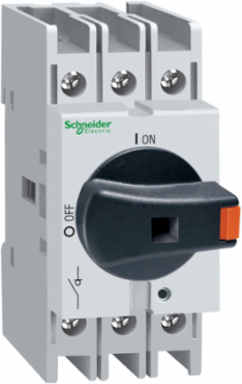

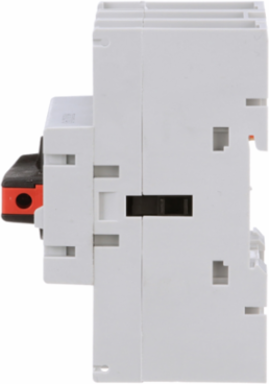

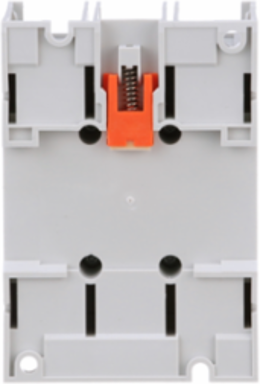

Schneider Electric VLS3P030R2 Disconnect switch, TeSys VLS, body switch, 30A, 20HP at 480VAC, UL98, three phase, 100kA SCCR, size 2, DIN rail mount
- MPN: VLS3P030R2
- PPN: SCH-VLS3P030R2
CAD
$199.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 30A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10HP rating at 200 to 208 VAC and 240 VAC, a 20HP rating at 480 VAC and a 30 HP rating at 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 22 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Features
- Engineered with a robust 30-Amp, 600V AC maximum rating, this 3-pole compact disconnect switch provides clean, simultaneous isolation for high-power three-phase motor circuits. It delivers reliable heavy-duty performance across commercial HVAC, pumping, and conveyor systems, ensuring full compliance with NEC and CEC guidelines for dedicated branch-circuit motor disconnects.
- Designed specifically for rear-mounting on standard 35mm DIN rails or direct panel-surface screw tracking, this module snaps into place inside your electrical enclosure. This high-density, space-saving design eliminates the need for specialized adapter plates, drastically lowering installation time for industrial control panel builders and keeping layout wiring neat and organized.
- This flexible switch mechanism interfaces seamlessly with a wide range of TeSysTM VLS handle accessories, supporting both direct-mount front handles and extended through-the-door shaft kits. This adaptability allows facility maintenance teams to safely operate the disconnect from outside the high-voltage panel or directly on the chassis during internal servicing.
- Built to handle rigorous fault conditions, this disconnect boasts a high SCCR rating when paired with appropriate upstream overcurrent protection devices. This heavy-duty endurance ensures that the internal silver-alloy contacts resist welding and catastrophic damage during high-inrush motor starts or downstream short-circuits, maintaining the overall safety integrity of your automation line.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy, United States
Depth100 mm
Physical Attributes
- Color
- Gray
- Handle Front Plate Color
- grey
Handle Colorblack
Complementary Attributes
- Rated Operational Power In W
- 15 kW 400 V AC-23A)18.5 kW 500 V AC-23A)22 kW 690 V AC-23A)
Important Information Attributes
- Device Composition
- handle, switch
- Certificate Agency
- cULus, GL
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- VLS
- Control Type
- rotary handle
- Electrical Durability
- 30000 cycles AC-21
- Fire Resistance
- 960 °C IEC 60695-2-11
- Intermittent Duty Class
- class 120 - 60 %
- Marking
- 0 - 1
- Mounting Support
- back DIN rail
- Network Type
- AC
- Performance Level
- high performance
- Product Name
- TeSys VARIO LS
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- Handle Color
- black
- Height Nominal
- 75 mm
- [Icm] Rated Short-circuit Making Capacity
- 1128 A 690 V
- [Ith] Conventional Free Air Thermal Current
- 32 A (at 55 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
[Ie] Rated Operational Current30 A AC-22A Ue: 500 V, 30 A AC-22A Ue: 690 V30 A AC-23A Ue: 500 V, 30 A AC-23A Ue: 690 V30 A Ue: 600 V UL9830 A AC-21A Ue: 400 V, 30 A AC-21A Ue: 500 V, 30 A AC-21A Ue: 690 V, 30 A AC-22A Ue: 400 V, 30 A AC-23A Ue: 400 V
Connections - Terminalspower circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Contacts Type And Composition3 NO
Device Short NameVLS3P
Energy Efficiency OptimizedFalse
Fixing Modeby clips back
Making Capacity48 A 690 V AC-21A96 A 690 V AC-22A320 A 690 V AC-23A
Mechanical Durability30000 cycles
Network Frequency50/60 Hz
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch body
ReturnabilityYes
Rotary Handle Padlocking1 padlock 4-4 mm
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorgrey
Width Nominal70 mm
[Icw] Rated Short-time Withstand Current2500 A 690 V 1 s
[Ithe] Conventional Enclosed Thermal Current30 A
Rated Conditional Short-circuit Current50 kA 400 V 32 A gG
Package Weight(Lbs)414.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
