Tripp Lite

Tripp Lite PDUMV20 1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical

1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical
  • MPN: PDUMV20
  • UPC: 037332132543
  • PPN: TRP-PDUMV20

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$462.84/ EA

Description

1.9 kW Single-Phase Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical

Features

  • Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
  • Two-digit current meter reports output current in amps

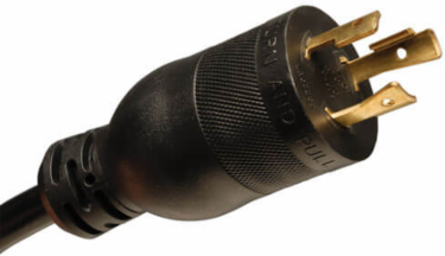

  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
  • 28 NEMA 5-15/20R outlets

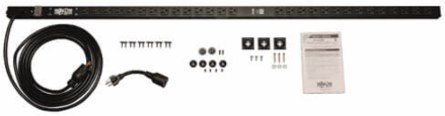

  • Toolless button mount and bolt-down bracket installation hardware included
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), NOM (Canada), RoHS Compliant

Physical

Form Factors Supported
Vertical
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
7.00
Unit Weight (lbs.)
5.39
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)2.40 x 3.50 x 63.20
Unit Dimensions (hwd / in.)60.47 x 1.5 x 1.64

User Interface, Alerts & Controls

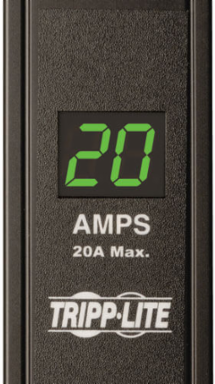

Front Panel LCD Display
Digital meter reports PDU output current in amps

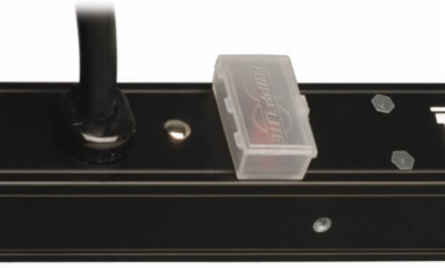

SwitchesLighted on/off switch with integrated transparent saftey cover

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
20
PDU Plug Type
NEMA 5-20P; NEMA L5-20P
Input Cord Length (ft.)
15
Recommended Electrical Service20A 120V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(28) 5-15/20R
Overload Protection
20A circuit breaker
Output Capacity Details2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)

Overview

UPC Code
037332132543
PDU TypeMetered

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
