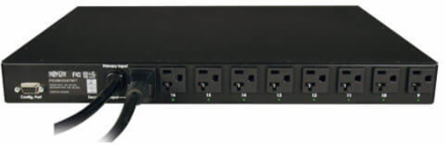

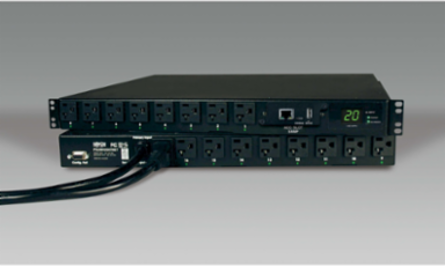

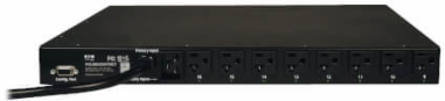

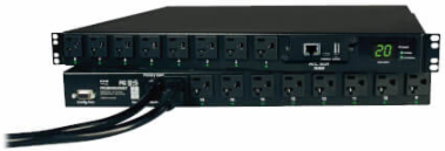

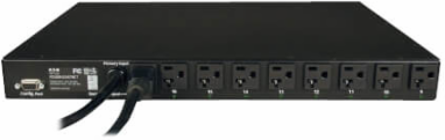

Tripp Lite PDUMH20ATNET 1.9kW Switched Automatic Transfer Switch PDU, 16 Outputs, 1U Rackmount
- MPN: PDUMH20ATNET
- UPC: 037332136411
- PPN: TRP-PDUMH20ATNET
CAD
$1676.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1.9kW Switched Automatic Transfer Switch PDU, 16 Outputs, 1U Rackmount
Features
- 1.9kW 120V ATS / Switched PDU, Single phase 20A 120V
- Enables redundant A/B power option for single-corded network devices

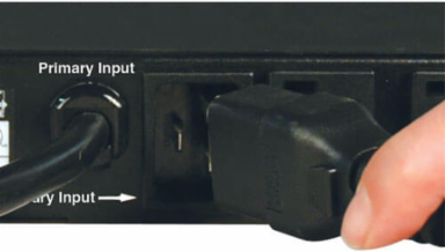

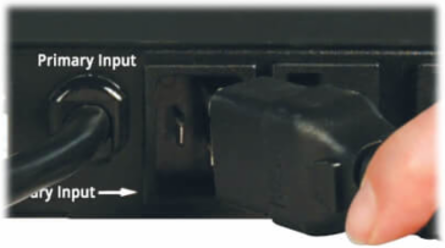

- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 L5-20P / 5-20P inputs; 16 5-15/20R outlets

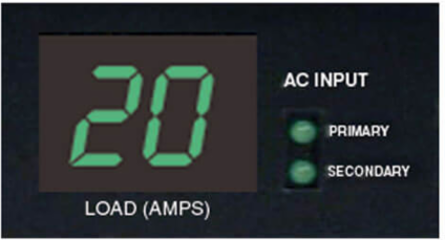

- Switched outlets, Built-in LX Platform network interface; Two digit visual current meter
- Temperature, humidity and contact closure monitoring options
- TAA Compliant
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 2.03 kW (127V), 1.92 kW (120V), 1.6 kW (100V)
- Current
- 20A (Agency de-rated to 16A)
- Output Receptacles
- (16) 5-15/20R
- Input Cord Type
- (2) NEMA L5-20P cords with two 5-20P adapters
- Minimum Required Rack Depth
- 19.5 in
- Weight
- 12.2 lbs (5.53 kg)
- Operating Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Operating Elevation
- 0-10,000 ft (0-3000 m)
- Frequency Compatibility
- 50 / 60 Hz
- Switching Time
- 2-7 milliseconds
- Network Speed
- 10/100 Mbps auto-sensing
- TVSS Grounding
- Rear grounding lug
Voltage100 V, 120 V, 127 V
PhaseSingle-Phase
Input Cord Length12 ft (3.6 m)
Form FactorHorizontal (1U) rackmount
Dimensions (H x W x D)1.75 in x 17.5 in x 14.5 in (4.44 cm x 44.4 cm x 36.8 cm)
MaterialMetal
Relative Humidity5 to 95% non-condensing
PDU TypeAuto-Transfer Switch; Switched
Overload Protectionn/a
Network InterfaceLX Platform, Java-free HTML5 web interface, SNMP, Telnet, SSH
CertificationsTested to UL 60950-1 (USA), CSA (Canada), NOM (Mexico), RoHS Compliant, TAA Compliant, Class A Emissions
Warranty2-year limited warranty
