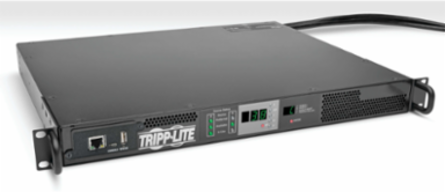

Tripp Lite PDUMNH20HVAT 3.8kW Single-Phase Monitored Automatic Transfer Switch PDU, 2 208/240V 20A L6-20P Inputs, 1 L6-20R Outlet, 1U
Tripp Lite PDUMNH20HVAT 3.8kW Single-Phase Monitored Automatic Transfer Switch PDU, 2 208/240V 20A L6-20P Inputs, 1 L6-20R Outlet, 1U
- MPN: PDUMNH20HVAT
- UPC: 037332187932
- PPN: TRP-PDUMNH20HVAT
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2046.08/ EA
Description
High-capacity 3.3/3.8kW PDU with ATS provides remote power monitoring and enables redundant power for non-redundant hardware. Digital display and Ethernet interface monitor load levels to prevent overloads that cause downtime.
Features

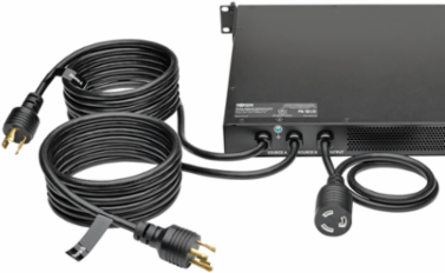

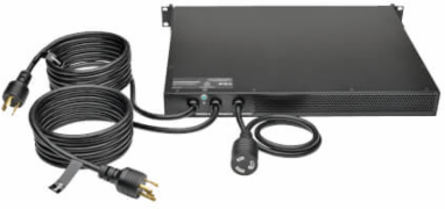

- Two single-phase L6-20P inputs with 10 ft. cords
- L6-20R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1–5 ms
- Built-in LX Platform Interface for remote access
- Digital display for real-time status monitoring
- 2-year limited warranty
- Primary and Secondary Inputs for Power Redundancy
- Built-In L6-20R Outlet
- Automatic Transfer Switching (ATS)
- Multifunction Digital Display
- Advanced Network Monitoring
- Broad Communications Compatibility
- Mounts Horizontally in 1U of Rack Space
Specifications
Certifications
- Certifications
- Tested to UL/CSA 60950-1 (USA, Canada), FCC Class A (Emissions), NOM (Mexico), RoHS Complaint
Physical
- Form Factors Supported
- 1U rackmount
- Minimum Required Rack Depth (inches)
- 17.5
- Shipping Dimensions (hwd / in.)
- 7.20 x 20.50 x 20.50
- Unit Dimensions (hwd / in.)
- 1.72 x 16.93 x 14
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)15.90
Unit Weight (lbs.)15.37
User Interface, Alerts & Controls
- Front Panel LCD Display
- Digital display reports input current in amps (Source A, Source B), output kilowatts (total), input voltage (Source A, Source B), input frequency (Source A, Source B) and output power factor
- Switches
- ENTER and MODE switches toggle the digital display to display all reported information
- Voltage Measurement Accuracy (Volts)
- +/-1%
Front Panel LEDsFront panel LEDs confirm amp (A) / kilowatt (kW) / voltage (V) / frequency (Hz) and power factor (PF) reporting information; Additional set of LEDs indicate Source A and Source B inputs for preferred, available and in-use status
Current Measurement Accuracy (Amps)+/-1%
Power Measurement Accuracy (Watts)+/-1%
Input
- PDU Input Voltage
- 200; 208; 220; 230; 240
- Maximum Input Amps
- 20.0
- PDU Plug Type
- (2) NEMA L6-20P
- Input Cord Details
- Set of two inputs connect to separate PRIMARY and SECONDARY power sources
Recommended Electrical Service20A 208/240V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase
Input Cord Length (ft.)10
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Capacity Details
- 3.8kW (240V), 3.7kW (230V), 3.5kW (220V), 3.3kW (208V), 3.2kW (200V); 20A maximum (agency de-rated to 16A continuous)
- Output Nominal Voltage
- 200; 208; 220; 230; 240
Output Receptacle DetailsOutput receptacle is on a 61cm / 24 inch cordset
Output Receptacles(1) L6-20R
Environmental
- Operating Temperature Range
- 32 to 122F (0-50C)
- Relative Humidity
- 5 to 95% (non-condensing)
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Overview
- UPC Code
- 037332187932
PDU TypeMonitored; Auto-Transfer Switch
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
