Tripp Lite PDUMH15ATNET 1U Automatic Transfer Switch PDU, 15A Inputs, 8 Outputs, TAA Compliant
- MPN: PDUMH15ATNET
- UPC: 037332136428
- PPN: TRP-PDUMH15ATNET
CAD
$1479.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

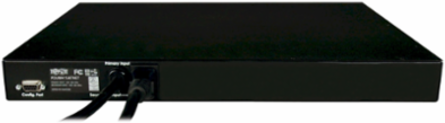

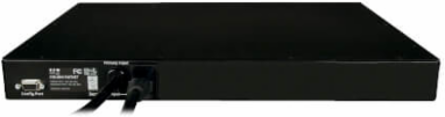

1U Automatic Transfer Switch PDU, 15A Inputs, 8 Outputs, TAA Compliant
Features
- Single phase 15A 120V Auto Transfer Switch / ATS PDU
- Built-in Java-free LX Platform interface for 24/7 remote access
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets
- Individually switched outlets; Two digit visual current meter
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Maximum Input Amps
- 15.0A (Agency de-rated to 12A continuous)
- Input Voltage
- 100-127V
- Frequency Compatibility
- 50/60 Hz
- Output Receptacles
- 8 NEMA 5-15R individually switched
- Input Cord Length
- 12 ft
- Unit Dimensions
- 1.75 x 17.5 x 14.5 in
- Unit Weight
- 11 lbs
- Operating Temperature Range
- -22°F to +122°F (-30°C to +50°C)
- Relative Humidity
- 5-95% non-condensing
- Compliance
- UL 60950-1, CSA, NOM, RoHS, TAA Compliant
Output Capacity1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity; 12A max per outlet
Input Amperage15A
Input PhaseSingle-Phase
Input Plug Type2 NEMA 5-15P
Form Factor1U horizontal rackmount
Rack Depth Required17.5 in
MaterialMetal
Storage Temperature Range-22°F to +122°F (-30°C to +50°C)
Operating Elevation0-10,000 ft (0-3000 m)
Communications InterfacePre-installed LX platform interface with Java-free HTML5 web, telnet, SSH, SNMP
