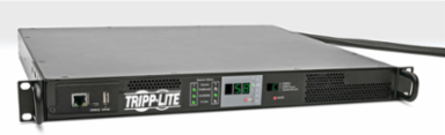

Tripp Lite PDUMNH30HVAT 5.8kW Monitored ATS PDU, 2 30A L6-30P Inputs, 1U Rackmount, Network Monitoring
- MPN: PDUMNH30HVAT
- UPC: 037332184917
- PPN: TRP-PDUMNH30HVAT
CAD
$2400.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High-capacity 5.8kW PDU with ATS provides remote power monitoring and enables redundant power for non-redundant hardware. Digital display and Ethernet interface help you monitor load levels to prevent overloads that cause downtime.
Features

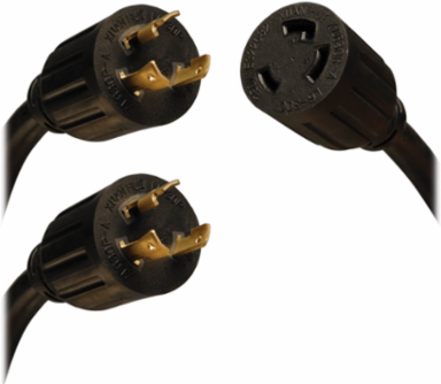

- Two single-phase L6-30P inputs with 10 ft. cords
- L6-30R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1–5 ms
- Built-in LX Platform Network Interface

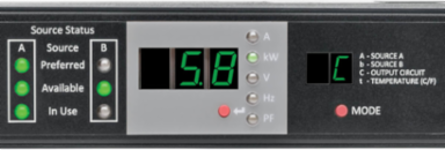

- Digital LED display for real-time status monitoring
- 2-year limited warranty
- Primary and Secondary Inputs for Power Redundancy
- Built-In L6-30R Outlet
- Automatic Transfer Switching
- Multifunction Digital Display
- Advanced Network Monitoring
- Broad Communications Compatibility
- Mounts Horizontally in 1U of Rack Space
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5.8 kW (240V), 5.5 kW (230V), 5.3 kW (220V), 5.0 kW (208V), 4.8 kW (200V); 30A max (de-rated to 24A continuous)
- Input Phase
- Single-Phase
- Output Nominal Voltage
- 200, 208, 220, 230, 240 V
- Minimum Required Rack Depth
- 17.5 in
- Material
- Metal
- Storage Temperature Range
- -22 to 140 F (-30 to 60 C)
- Operating Elevation
- 0 to 10,000 ft (0 to 3000 m)
- PDU Type
- Monitored; Auto-Transfer Switch
- Output Receptacle
- (1) L6-30R on 24 in (61 cm) cordset
- Communication Speed
- 10/100 Mbps auto-sensing
- Supported Protocols
- IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1/v2/v3, Telnet, SSH, FTP, DHCP, NTP
Maximum Input Amps30A (de-rated to 24A continuous)
Frequency Compatibility50 / 60 Hz
Unit Dimensions1.72 x 16.93 x 14 in
Unit Weight15.37 lbs
Operating Temperature Range32 to 122 F (0 to 50 C)
Relative Humidity5 to 95% (non-condensing)
CertificationsUL/CSA 60950-1, FCC Class A, NOM, RoHS Compliant
PDU Plug Type(2) NEMA L6-30P
Rackmount Size1U, 19-inch EIA standard
Network InterfaceJava-free HTML5 LX Platform
