Tripp Lite PDUMH15HVATNET 2.4kW Single-Phase Switched Automatic Transfer Switch PDU, 1U, 10 C13 Outputs
- MPN: PDUMH15HVATNET
- UPC: 037332197504
- PPN: TRP-PDUMH15HVATNET
CAD
$1975.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2.4kW Single-Phase Switched Automatic Transfer Switch PDU, 1U, 10 C13 Outputs
Features
- 8 switched and 2 unswitched 200–240V C13 outlets distribute power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Remote power monitoring and control reduces on-site visits and maintenance costs
- Auto Probe for Autonomous Device Management

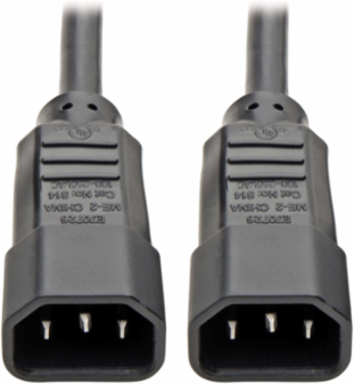

- Dual 12 ft. input cords with C14 plugs connect to separate primary/secondary power sources
- Mounts horizontally in 1U of space in common 19 in. racks for easy installation
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- 2–2.4kW Single-Phase ATS PDU with Primary and Secondary Inputs for Power Redundancy
- Switches from Primary to Secondary Power Source in Milliseconds
- Switched C13 Outlets Are Individually Controllable for Remote Reboots and Load Shedding
- Check Essential Functions at a Glance
- Built-In LX Platform Interface Gives You Unrestricted Remote Access to Your Equipment 24/7
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Easy to Install Horizontally in an EIA-Standard 19 in. Rack
- TAA-Compliant for GSA Schedule Purchases
- 2-Year Warranty
Documentation & Downloads
Specifications
Additional
- Output Voltage
- 200; 208; 220; 230; 240 V
- Power Capacity
- 2.4 kW (240V), 2.3 kW (230V), 2.2 kW (220V), 2.08 kW (208V), 2.0 kW (200V)
- Input Phase
- Single-Phase
- Output Receptacles
- 10 C13
- Unswitched Outlets
- 2 C13
- Input Plug Type
- (2) IEC-320 C14
- Dimensions (H x W x D)
- 1.71 x 17.33 x 14.45 in
- Material
- Steel
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
- Warranty
- 2-year limited warranty
Input Voltage200; 208; 220; 230; 240 V
Maximum Input Amperage10 A
Frequency Compatibility50 / 60 Hz
Switched Outlets8 C13
Input Cords2 cords, 12 ft each
MountingHorizontal (1U), 19 in rack
Weight10.41 lbs
Relative Humidity5-95% (non-condensing)
ComplianceUL60950-1, CAN/CSA-C22.2 60950-1, CE, NOM, EAC, EN55032, EN62040-2, FCC Class A, RoHS, TAA
