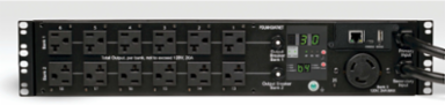

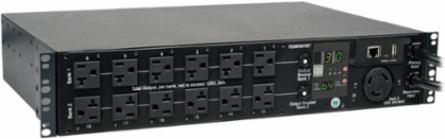

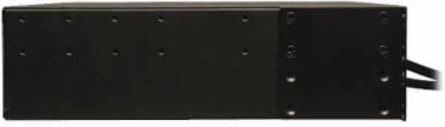

Tripp Lite PDUMH30ATNET 2.9kW Switched Automatic Transfer Switch PDU, 2U Rackmount, 30A, 25 Outputs
- MPN: PDUMH30ATNET
- UPC: 037332157294
- PPN: TRP-PDUMH30ATNET
CAD
$2617.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2.9kW Switched Automatic Transfer Switch PDU, 2U Rackmount, 30A, 25 Outputs
Features
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
- Enables redundant A/B power option for non-redundant network devices
- Built-in LX Platform Network Interface
- 2U rackmount, 2 L5-30P inputs, 25 switched outlets (24 5-15/20R, 1 L5-30R)
- Individually switched outlets and built-in network interface enables remote control and monitoring

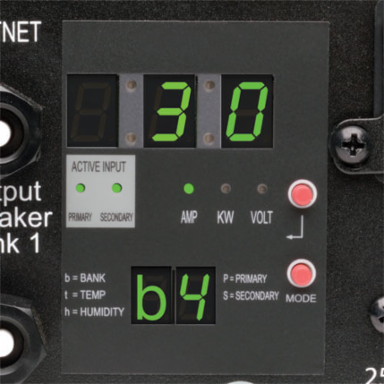

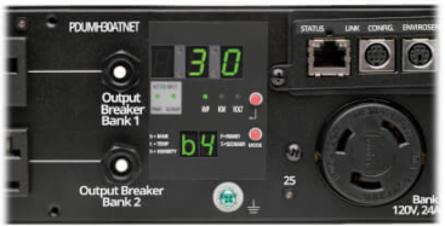

- Digital meter reports voltage, kW load level and output amperage in 4 load segments
- TAA Compliant
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 3.05 kW (127V), 2.88 kW (120V), 2.4 kW (100V) / 30A total capacity (Agency de-rated 24A); 24A max per L5-30R outlet; 20A max per breakered load bank; 16A max per 5-15/20R outlet
- Input Voltage
- 100 V, 120 V, 127 V
- Frequency Compatibility
- 50/60 Hz
- Output Receptacles
- (24) 5-15/20R; (1) L5-30R
- Outlet Control
- 25 individually controllable switched outlets
- Dimensions
- 3.4 x 17.3 x 11.9 in
- Minimum Required Rack Depth
- 16.9 in
- PDU Plug Type

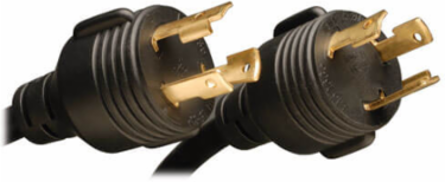

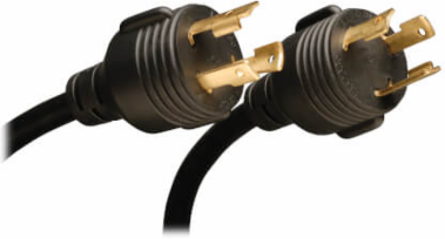

- (2) NEMA L5-30P
- Certifications
- UL 60950-1, CSA, Class A Emissions, NOM, RoHS, TAA Compliant
- Operating Elevation
- 0 to 10,000 ft (0 to 3000 m)
- Power Measurement Accuracy
- +/-1%
- Current Measurement Accuracy
- +/-1%
- Network Interface
- Built-in LX Platform with Java-free HTML5 web interface, SNMP, Telnet, SSH
Maximum Input Amps30A (Agency de-rated to 24A continuous)
Input PhaseSingle-Phase
Switching Speed1-5 milliseconds (solid-state)
Overload ProtectionTwo 20A output breakers protect 12 5-15/20R outlets each
PDU Form FactorHorizontal (2U) rackmount
Weight15.3 lbs (6.94 kg)
Input Cord Length10 ft
MaterialMetal
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
Operating Humidity Range5 to 95% non-condensing
Voltage Measurement Accuracy+/-1%
TVSS GroundingGrounding lug
Warranty2-year limited warranty
