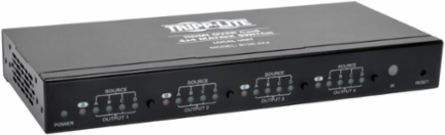

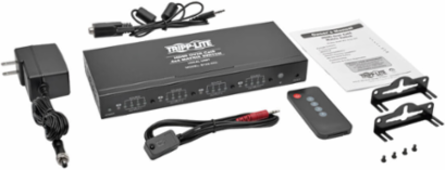

Tripp Lite B126-4X4 4 x 4 HDMI over Cat5/6 Matrix Splitter Switch, Extends 1080p up to 175 ft.
- MPN: B126-4X4
- UPC: 037332180193
- PPN: TRP-B126-4X4
CAD
$903.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Works with Tripp Lite’s B126-Series receivers to share multiple HDMI sources between multiple monitors, each on a single Cat5e/6 cable, up to 175 ft. away. Ideal for digital signs, trade shows, retail and presentations.
Features
- Routes any source to any display or same source to multiple displays
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Switches inputs via button, remote control or RS-232 serial
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Video Resolution
- Up to 1080p (60 Hz)
- Signal Extension Distance - 1080p
- 125 ft
- Signal Extension Distance - 1440 x 900
- 175 ft
- Signal Extension Distance - 800 x 600
- 175 ft
- Signal Extension Distance - 640 x 480
- 175 ft
- Signal Extension Distance - 480i
- 175 ft
- Input Power
- 100-240V, 50/60 Hz, 0.5A
- Dimensions (H x W x D)
- 1.20 x 5.9 x 3.90 in
- Operating Temperature Range
- 0 to 40 C (32 to 104 F)
- Relative Humidity
- 20 to 90%
- Switching Controls
- Button, Remote Control, RS-232 serial
- Color Depth
- 24-bit True Color (8 bits per channel)
- Cable Type
- HDMI, Cat5e/6 (24 AWG solid wire recommended)
- Compliance
- TAA Compliant
- Warranty
- 1-year limited warranty
Signal Extension Distance - 1080i175 ft
Signal Extension Distance - 1600 x 1200175 ft
Signal Extension Distance - 1024 x 768175 ft
Signal Extension Distance - 720p175 ft
Signal Extension Distance - 480p175 ft
Ports4
Output Power5V, 3A
Weight2.10 lbs
Storage Temperature Range-20 to 60 C (-4 to 140 F)
Connection Interfaces(4) HDMI Female, (4) RJ45 Female, DB9 Female (serial)
AudioStereo
HDCP SupportYes
ColorBlack
Mounting HardwareIncluded
