Tripp Lite BHDBT-K-SI-ER HDBaseT HDMI Extender Kit, 1080p, Up to 500 ft, IR Control, Includes Mounting Hardware
- MPN: BHDBT-K-SI-ER
- UPC: 037332187086
- PPN: TRP-BHDBT-K-SI-ER
CAD
$506.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

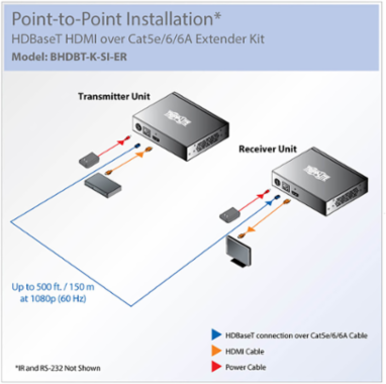

Transmit HDMI video and audio, RS-232 serial and IR Remote Control signals over a single Cat5e/6/6a cable to a projector, monitor or television. Ideal for digital signs and trade show presentations.
Features
- Extends a 1080p @ 60 Hz signal up to 500 feet (150 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray™ player from a remote monitor
- Plug and play—no software or drivers to install
- 1-year limited warranty
Specifications
Additional
| Resolution | 1920 x 1080 (1080p) |
|---|---|
| Max Range at 1080p | 500 ft |
| Range Expansion | Up to 3,000 ft (900 m) with up to five transceivers |
| Video Support | 3D video, EDID, HDCP |
| RS-232 Serial Extension Support | Yes |
| IR Remote Extension Support | Yes |
| Power Supply Output | 5V, 3A |
| Storage Temperature Range | -20 to 60 C (-4 to 140 F) |
| Transmitter Unit Dimensions (D x H x W) | 2.5 in x 1.1 in x 4.5 in |
| Transmitter Unit Weight | 0.55 lbs |
| Side A Connector 1 | HDMI (FEMALE) |
| Side B Connector 1 | HDMI (FEMALE) |
| Side B Connector 3 | DB9 (MALE) |
| HDMI Ports Locking | Yes |
| Product Warranty Period | 1-year limited warranty |
| Refresh Rate | 60 Hz |
|---|---|
| Transmission Distance | Up to 500 ft (150 m) |
| Audio Support | 7.1-channel surround sound, DTS-HD, Dolby TrueHD |
| RS-232 Baud Rate | Up to 115 Kbps |
| IR Remote Frequency | 39 KHz |
| Power Supply Input | 100-240V, 50/60 Hz, 0.5A |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Relative Humidity | 20 to 90% |
| Receiver Unit Dimensions (D x H x W) | 1.1 in x 1.1 in x 4.5 in |
| Receiver Unit Weight | 0.5 lbs |
| Side A Connector 2 | RJ45 (FEMALE) |
| Side B Connector 2 | RJ45 (FEMALE) |
| Included Mounting Accessories | Yes |
| Compliance | CE, FCC, RoHS, REACH, TAA |
| Color | Black |
