Tripp Lite B126-110 HDMI over Cat5/6 Extender, 125 ft, Supports 1080p, TAA-Compliant
- MPN: B126-110
- UPC: 037332168061
- PPN: TRP-B126-110
CAD
$377.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

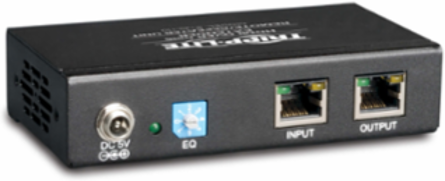

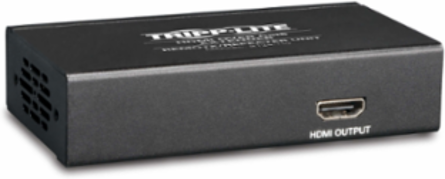

Works with Tripp Lite’s B126-Series transmitters and receivers to extend an HDMI signal via Cat5e/6 cable to multiple projectors, monitors or televisions in a chain. Ideal for digital signs and trade show presentations.
Features
- Extends 1080i (60 Hz) signal up to 175 ft.
- Connect up to 3 units in a chain for maximum extension
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Plug and play—no software or drivers to install
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Signal Extension Distance 1080i
- 175 ft
- Signal Extension Distance 3D
- 100 ft
- Maximum Chain Extension 1080i
- 700 ft
- Maximum Chain Extension 3D
- 400 ft
- Color Depth
- 24-bit True Color (8 bits per channel)
- Input Voltage
- 100-240V, 50/60 Hz, 0.5A
- Operating Temperature Range
- 0 to 40 C (32 to 104 F)
- Relative Humidity
- 20 to 90%
- Ports
- 1
- Unit Dimensions
- 1.0 in x 4.50 in x 2.50 in
- Connector Side A
- RJ45 (Female)
- Color
- Black
Signal Extension Distance 1080p125 ft
Maximum Chain Units4 units
Maximum Chain Extension 1080p500 ft
Audio SupportStereo, 7.1-channel surround sound
HDCP SupportYes
Output Voltage5V, 2A
Storage Temperature Range-20 to 60 C (-4 to 140 F)
Video Resolution SupportUp to 1080p (60 Hz)
TechnologyHDMI
MountingWall, rack or pole (hardware included)
Connector Side BHDMI (Female), RJ45 (Female)
Product Warranty Period1-year limited
