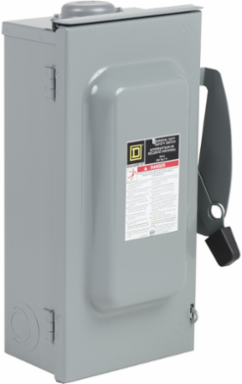

Square D CD323NRB General Duty Safety Switch 100A 120/240V 3 Poles 30HP NEMA 3R
- MPN: CD323NRB
- UPC: 785901404996
- PPN: SCH-CD323NRB
CAD
$677.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 100A for 120/240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 3R galvannealed steel with bolt on provisions. This switch complies with CSA C22.2.
