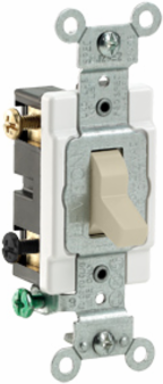

Leviton CS215-2I 15 Amp Double-Pole Toggle Switch, Quiet, Commercial Grade, 120/277 Volt
Leviton CS215-2I 15 Amp Double-Pole Toggle Switch, Quiet, Commercial Grade, 120/277 Volt
- MPN: CS215-2I
- UPC: 078477815571
- PPN: LEV-CS215-2I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.50/ EA
Description
15 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - Ivory
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL Fed Spec WS896E
- File #E7458
- Warranty
- 10-Year Limited
CSA C22.2 No. 111File #152105
NOM057
UL StandardUL 20
Material Specifications
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic
- Contacts
- Silver-Cadmium .031 Thick
- Strap Material
- Steel
- Toggle
- Polycarbonate
Base MaterialPBT
ColorIvory
Cover MaterialNylon
Terminal ScrewsSteel 8-32
Mechanical Specifications
- Product ID
- Stamped on Strap
- Terminal Accom.
- 14-12 AWG
- Termination
- Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Toggle Switch
- Grade
- Commercial Specification Grade
FunctionDouble-Pole
Warranty10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 15 A
- Max. Amperage
- 12 Amp
- Voltage
- 120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
Temperature RiseMaximum 30 degrees C rise
AC Horsepower Ratings
- HP Rating
- 1/2HP-120V 2HP-240V-277V
