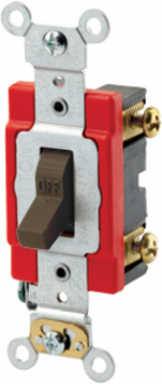

Leviton 1221-2 20 Amp Extra Heavy-Duty Toggle Switch, 120/277 Volt, Self-Grounding
- MPN: 1221-2
- UPC: 078477239889
- PPN: LEV-1221-2
CAD
$18.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - BROWN
Features
- Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Horsepower Rating
- 1HP-120V, 2HP-240V-277V
- Duty Grade
- Extra Heavy-Duty Industrial Specification Grade
- Temperature Rise
- Maximum 30C rise
- Overload UL20 Test
- 100 cycles at 4.8 times rated current
- Termination
- Back or Side Wire
- Terminal Screws
- Brass 8-32
- Strap Material
- Steel
- Cover Material
- Thermoplastic
- Ground Clips
- Brass
- Grounding
- Self-Grounding
- Flammability Rating
- V-2 per UL 94
- ANSI
- C-73
- NOM
- 057
- RoHS
- Compliant
- Color
- Brown
Voltage120/277 VAC
FunctionSingle-Pole
Operating Temperature-40C to 65C
Endurance50,000 cycles minimum
Dielectric Voltage1500 V for 1 minute
Terminal Accommodation14-#10 AWG back wired; #14-#12 AWG side wired
Terminal IDBrass-Hot Black, Hot White-Neutral, Green-Ground
Body MaterialThermoplastic
Toggle MaterialPolycarbonate
Grounding ScrewBrass 8-32
Contact MaterialSilver Alloy
UL StandardUL 20
NEMAWD-1 & WD-6
CSAC22.2 No. 111
Country of OriginUnited States
