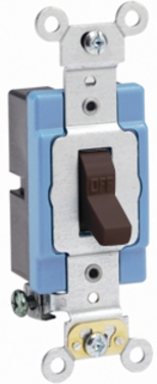

Leviton 1201-2 Extra Heavy-Duty 15 Amp Toggle Switch, Single-Pole, 120/277 Volt, Brown
- MPN: 1201-2
- UPC: 078477240564
- PPN: LEV-1201-2
CAD
$21.39
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - BROWN
Features
- Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/277 VAC
- HP Rating
- 1/2HP-120V, 2HP-240/277V
- Device Type
- Toggle Switch
- Screw Terminal Torque
- 14-18 in-lbs
- Grounding
- Self-Grounding
- Operating Temperature
- -40°C to 65°C
- Overload Test
- 100 cycles at 4.8 times rated current
- Grade
- Extra Heavy-Duty Industrial Specification Grade
- Cover Material
- Thermoplastic
- Ground Clips
- Brass
- Contact Material
- Silver Alloy
- Toggle Material
- Polycarbonate
- Country of Origin
- United States
- NEMA
- WD-1 & WD-6
- UL Standard
- UL 20
- NOM
- 057
Amperage15 A
FunctionSingle-Pole
TerminationBack or Side Wire
Terminal Accommodation14-#10 AWG back wired; #14-#12 AWG side wired
Temperature RiseMaximum 30 degrees C rise
Dielectric VoltageWithstands 1500V for 1 minute
Endurance50,000 cycles minimum
MaterialThermoplastic, Silver Alloy, Brass, Steel, Polycarbonate
Strap MaterialSteel
Grounding ScrewBrass 8-32
Base MaterialThermoplastic
ColorBrown
ANSIC-73
CSA CertificationCSA C22.2 No. 111, File #152105
UL Fed SpecWS896E, File #E7458
FlammabilityRated V-2 per UL 94
