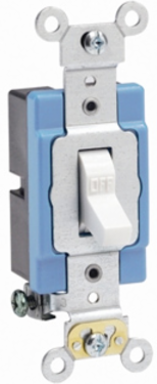

Leviton 1201-2W 15 Amp Toggle Switch, Extra Heavy Duty, 120/277 Volt, Self-Grounding
- MPN: 1201-2W
- UPC: 078477240588
- PPN: LEV-1201-2W
CAD
$21.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - WHITE
Features
- Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 1/2 HP-120V, 2 HP-240V-277V
- Temperature Range
- -40°C to 65°C
- Function
- Single-Pole
- Toggle Material
- Polycarbonate
- Cover Material
- Thermoplastic
- Contact Material
- Silver Alloy
- Grounding Screw Material
- Brass 8-32
- Termination
- Back or Side Wired
- Flammability Rating
- V-2 per UL 94
- Grounding
- Self-Grounding
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Terminal Accommodation
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Color
- White, Brown, Gray, Ivory, Red
Voltage120/277 VAC
Max Amperage12 Amp
Temperature RiseMax 30°C rise
Endurance50,000 cycles minimum
Base MaterialThermoplastic
Strap MaterialSteel
Ground Clips MaterialBrass
Terminal Screws MaterialBrass 8-32
Screw Terminal Torque14-18 in-lbs
ComplianceANSI C-73, CSA C22.2 No. 111 File #152105, NEMA WD-1 & WD-6, NOM 057, UL Standard UL 20, UL Fed Spec WS896E File #E7458, RoHS Compliant
GradeExtra Heavy-Duty Industrial Specification Grade
Overload UL20 Test100 cycles at 4.8× rated current
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Ground
Country of OriginUnited States
