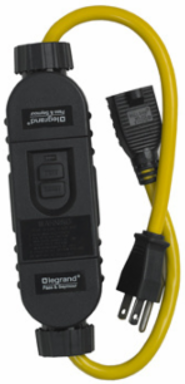

Pass & Seymour 2097PC2A Portable 2-Foot In-Line GFCI, 1.0 lb, Automatic Reset, UL Listed
- MPN: 2097PC2A
- UPC: 785007381689
- PPN: P-S-2097PC2A
- UNSPSC: 39121406
CAD
$123.02
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stay safer on any job, any project with this code-compliant 2-Foot In-Line Portable GFCI (Automatic Reset). Designed for use with portable equipment (drills, saws, power painters, etc.) and providing protection against electrical shock caused by ground faults. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
- GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Length | 27.75 in |
| Weight | 1.0 lbs |
| Finish | Matte |
| Amperage | 20.0 A |
| Indoor/Outdoor | Outdoor |
| Is Weather Resistant | No |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Connection Location | Top and Bottom |
| Number of Poles | Double Pole |
| Wall Plate Included | No |
| Outlet Type | GFCI; Self-Test |
| Voltage | 125.0 V |
| Depth | 1.75 in |
|---|---|
| Width | 2.0 in |
| Color | Black |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Is Tamper-Resistant | No |
| Seismic Tested | No |
| Operating Temperature Min | -35.0 °C |
| Number of Wires | 3.0 |
| Operating Temperature | -35°-66°C |
| NEMA Configuration Code | 5-20P; 5-20R |
| Operating Temperature Max | 66.0 °C |
| Features | Portable GFCI; Automatic Reset |
