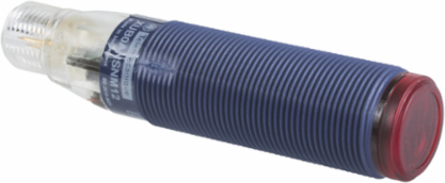

Telemecanique Sensors XUB4ANANM12 Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, M12
- MPN: XUB4ANANM12
- PPN: TES-XUB4ANANM12
- UNSPSC: 39121528
CAD
$133.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This design 18 single mode (diffuse system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M12, 4 pins
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Line Of Sight Type
- axial
- Material
- plastic
- Series Name
- general purpose single mode
- Sensor Design
- cylindrical M18
- Electronic Sensor Type
- photo-electric sensor
Discrete Output TypeNPN
Type Of Output Signaldiscrete
Emissioninfrared diffuse
Sensor NameXUB
Wiring Technique3-wire
Detection Systemdiffuse
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance0.1-0.1 m diffuse
Complementary
- Current Consumption
- 35 mA no-load
- Maximum Delay Response
- 1 ms
- Status Led
- 1 LED yellow)output state
- Lens Material
- PMMA
- Length
- 62 mm
- Maximum Delay Recovery
- 1 ms
- Maximum Sensing Distance
- 0.15 m diffuse
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- PBT
- Add On Output
- without
Switching Frequency<= 500 Hz
Diameter18 mm
Setting-Upwithout sensitivity adjustment
Maximum Voltage Drop<1.5 V closed state)
Net Weight0.04 kg
Maximum Delay First Up15 ms
Supply Voltage Limits10-36 V DC
Wire Insulation MaterialPvR
Output Typesolid state
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- UL || CE || CSA
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 || IP69K double insulation DIN 40050
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111230EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111208EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
