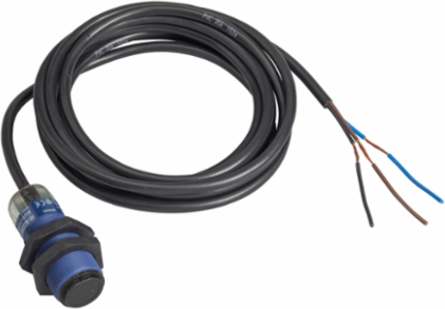

Telemecanique Sensors XUB0AKSNL2T Photoelectric sensors XU, XUB, emitter, 12...24 VDC, cable 2 m
- MPN: XUB0AKSNL2T
- PPN: TES-XUB0AKSNL2T
- UNSPSC: 39121528
CAD
$112.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This design 18 multi mode photo-electric transmitter has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode cylindrical photoelectric emitter has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and troubleshoot issues. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | infrared thru beam |
| Sensor Name | XUB |
| Wiring Technique | 3-wire |
| Detection System | thru beam |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 20-20 m thru beam need a receiver |
| Type Of Output Signal | discrete |
|---|---|
| Cable Length | 2 m |
| Line Of Sight Type | axial |
| Material | plastic |
| Series Name | general purpose multimode |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor transmitter |
Complementary
| Current Consumption | 20 mA no-load |
|---|---|
| Maximum Delay Response | 2 ms |
| Status Led | 1 LED green)supply on |
| Lens Material | PMMA |
| Add On Input | test by emission breaking |
| Net Weight | 0.095 kg |
| Maximum Delay First Up | 200 ms |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PvR |
| Output Type | solid state |
| Switching Frequency | <= 250 Hz |
|---|---|
| Diameter | 18 mm |
| Setting-Up | without sensitivity adjustment |
| Maximum Voltage Drop | <1.5 V closed state) |
| Length | 62 mm |
| Maximum Delay Recovery | 2 ms |
| Maximum Sensing Distance | 30 m thru beam |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Enclosure Material | PBT |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CSA || CE || UL |
|---|---|
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ambient Air Temperature For Operation | -25-55 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111208EN |
