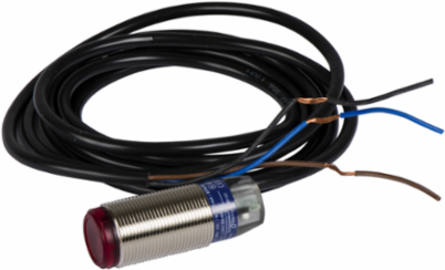

Telemecanique Sensors XUB9BPANL2 Photoelectric sensors XU, XUB, polarised, Sn 2 m, 12...24 VDC, cable 2 m
- MPN: XUB9BPANL2
- PPN: TES-XUB9BPANL2
CAD
$152.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This design 18 single mode (polarised reflex system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- red polarised reflex
- Sensor Name
- XUB
- Wiring Technique
- 3-wire
- Detection System
- polarised reflex
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 2-2 m polarised reflex need reflector XUZC50
Discrete Output TypePNP
Type Of Output Signaldiscrete
Cable Length2 m
Line Of Sight Typeaxial
Materialmetal
Series Namegeneral purpose single mode
Sensor Designcylindrical M18
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- 35 mA no-load
- Maximum Delay Response
- 1 ms
- Status Led
- 1 LED yellow)output state
- Lens Material
- PMMA
- Length
- 62 mm
- Maximum Delay Recovery
- 1 ms
- Maximum Sensing Distance
- 3 m polarised reflex
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Enclosure Material
- nickel plated brass
- Add On Output
- without
Switching Frequency<= 500 Hz
Diameter18 mm
Setting-Upwithout sensitivity adjustment
Maximum Voltage Drop<1.5 V closed state)
Net Weight0.05 kg
Maximum Delay First Up15 ms
Supply Voltage Limits10-36 V DC
Wire Insulation MaterialPvR
Output Typesolid state
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- CE || CSA || UL
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
Vibration Resistance7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111230EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111208EN
