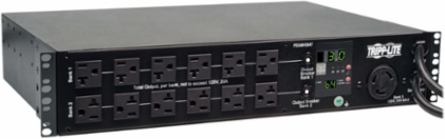

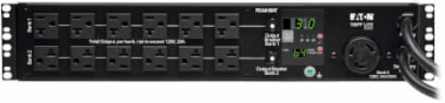

Tripp Lite PDUMH30AT 2U Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R Outputs
- MPN: PDUMH30AT
- UPC: 037332157287
- PPN: TRP-PDUMH30AT
CAD
$1670.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2U Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R Outputs
Features
- Single phase 30A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources

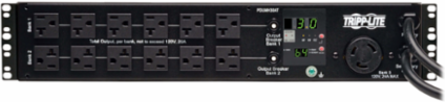

- 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R & 1 L5-30R outlets

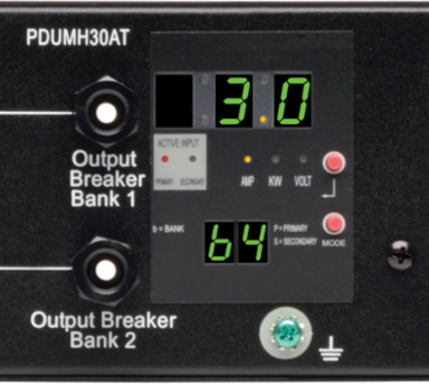

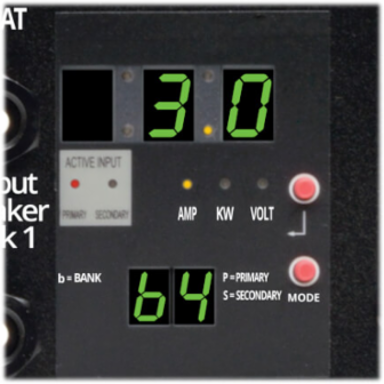

- Digital meter reports voltage, kW load level and output amperage in 4 load segments
- TAA Compliant
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Voltage
- 100-127V
- Power Capacity
- 3.05 kW (127V), 2.88 kW (120V), 2.4 kW (100V)
- Input Plug Type

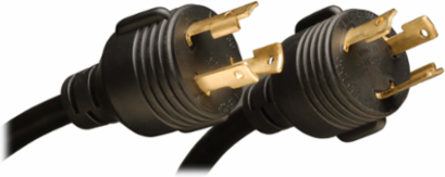

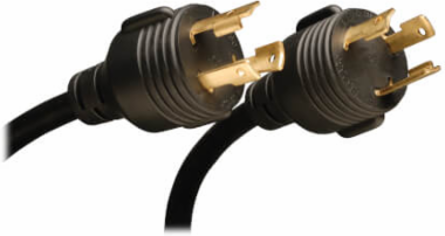

- 2 x NEMA L5-30P
- Overload Protection
- 2 x 20A output breakers protecting 12 5-15/20R outlets each
- Form Factor
- 2U horizontal rackmount
- Unit Weight
- 13.71 lbs
- Operating Elevation
- 0-10,000 ft (0-3000 m)
- Storage Temperature Range
- -30B0C to +50B0C (-22B0F to +122B0F)
- Compliance
- UL 60950-1, CSA, NOM, RoHS, TAA Compliant
Amperage30A (Agency de-rated to 24A continuous)
PhaseSingle-Phase
Output Receptacles24 x 5-15/20R, 1 x L5-30R
Input Cord Length10 ft
Unit Dimensions (HxWxD)3.41 x 17.32 x 11.89 in
MaterialMetal
Relative Humidity5-95% non-condensing
Switching Speed1-5 milliseconds solid-state switching
