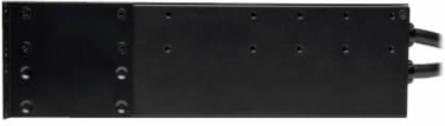

Tripp Lite PDUMH30HVATNET 5.8kW Single-Phase Switched Automatic Transfer Switch PDU, 2U, 30A, 208/240V
- MPN: PDUMH30HVATNET
- UPC: 037332159601
- PPN: TRP-PDUMH30HVATNET
CAD
$2781.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5.8kW Single-Phase Switched Automatic Transfer Switch PDU, 2U, 30A, 208/240V
Features
- Single phase 30A 208/240V Auto Transfer Switch / ATS PDU with Solid State Switching
- Separate primary & secondary inputs enable redundant-power option for non-redundant network devices
- LX Platform Network Interface
- 2U rackmount, 2 L6-30P inputs, 19 switched outlets (16 C13, 2 C19, 1 L6-30R)

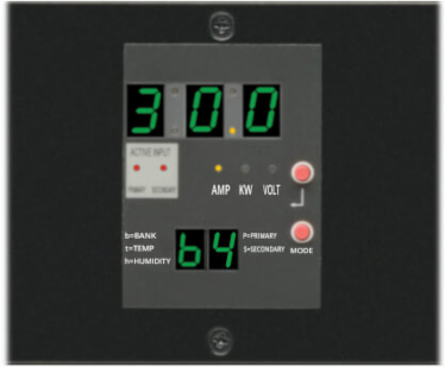

- Individually switched outlets, network interface and visual current, voltage and environmental monitoring
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5.76 kW (240V), 5 kW (208V), 4.8 kW (200V) total capacity
- Voltage
- 200; 208; 240 V
- Input Phase
- Single-Phase
- PDU Type
- Auto-Transfer Switch; Switched
- Recommended Electrical Service
- 30A 208/240V
- Power Measurement Accuracy
- +/-1%
- Current Measurement Accuracy
- +/-1%
- Dimensions (HxWxD)
- 3.5 x 17.5 x 12.5 in (8.8 x 44.5 x 31.8 cm)
- Unit Weight
- 13.7 lbs (6.21 kg)
- Material
- Metal
- Relative Humidity
- 5 to 95% (non-condensing)
- Network Speed
- 10/100 Mbps
- Certifications
- UL 60950-1, NOM, RoHS, TAA Compliant
Maximum Input Amps30.0A (Agency de-rated to 24A continuous)
Frequency Compatibility50 / 60 Hz
Output Receptacles16 C13, 2 C19, 1 L6-30R
Overload ProtectionTwo 20A output circuit breakers; Breaker 1 controls 9 outlets (8 C13, 1 C19); Breaker 2 controls 9 outlets (8 C13, 1 C19); L6-30R outlet unbreakered

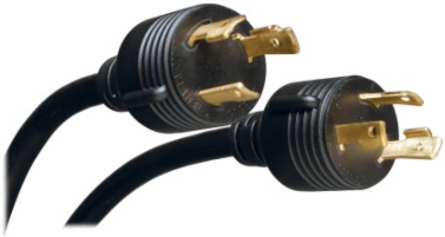

PDU Plug Type(2) NEMA L6-30P
Voltage Measurement Accuracy+/-1%
Minimum Required Rack Depth16 in.
Form Factor2U rackmount, Horizontal (2U)
Input Cord Length10 ft (3.05 m)
Operating Temperature Range-30°C to +50°C (-22°F to +122°F)
Operating Elevation0 to 10,000 ft (0 to 3000 m)
Warranty2-year limited warranty
