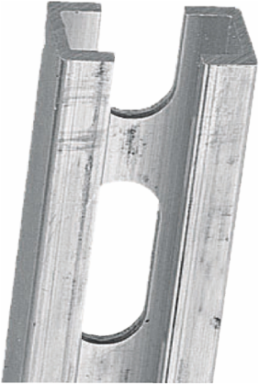

Schneider Electric NSYMDVR3M Vertical Aluminium Rail 3 Meter, Compact Profile 25 mm x 15 mm, Set of 10
- MPN: NSYMDVR3M
- PPN: SCH-NSYMDVR3M
CAD
$69.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this vertical aluminium rail from Schneider Electric measures an impressive 3 meters in length, making it an ideal choice for various mounting applications. Constructed from lightweight yet robust aluminium, it offers a reliable solution for supporting enclosures with a fixing nut design that ensures secure installation. With a compact profile of 25 mm in width and 15 mm in depth, this rail is not only easy to handle but also compatible with a range of PanelSeT models, enhancing its functionality across different setups. Each packaging unit contains ten rails, providing ample supply for your project needs, all backed by an 18-month warranty for peace of mind.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, France
- Length
- 118.11 in
Width0.98 in
Depth15 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2025-09-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- aluminium
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Thickness
- 2.5 mm
- Warranty In Months
- 18
- Length Total
- 3000 mm
- Width Nominal
- 25 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 upright
Fixing Modescrewed M8 - on backstuds of enclosure
Mounting Supportfixing nut
Product Or Component Typerail
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1001004EN
Length Useful3000 mm
Width Real25 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- rail
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
