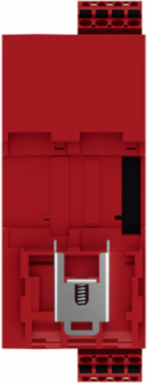

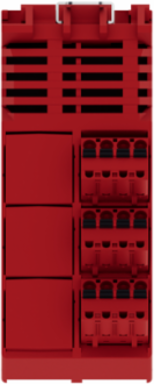

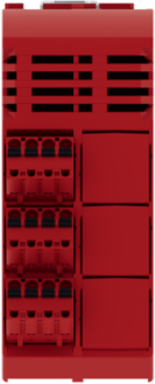

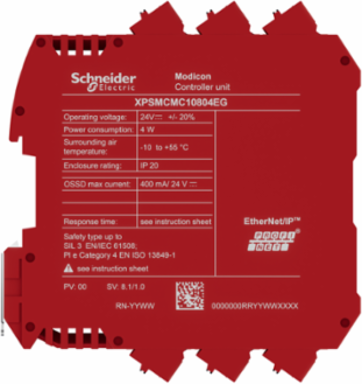

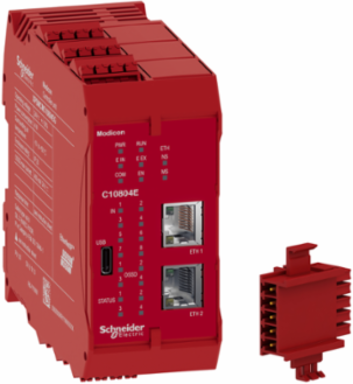

Schneider Electric XPSMCMC10804BEG Safety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, spring
- MPN: XPSMCMC10804BEG
- PPN: SCH-XPSMCMC10804BEG
CAD
$1269.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety controller with embedded communication, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, spring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|

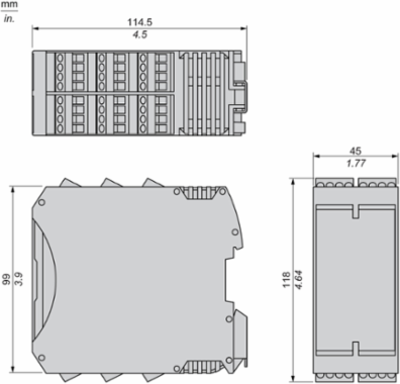

| Depth | 114.5 mm |
|---|
Complementary Attributes
| Integrated Connection Type | backplane expansion bus, USB 2.0 port |
|---|
Important Information Attributes
| Cable Cross Section | 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-1.5 mm² - 23 AWG...16 AWG flexible with cable end, without bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end |
|---|---|

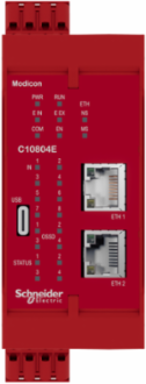

| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error, 1 LED orange COM communication, 1 LED blue EN master enable8 LEDs yellow IN input status, 2 LEDs yellow RST restart signal2 LEDs yellow STATUS output channel, 1 LED green/red MS module status1 LED green/red NS network status |
| Safety Reliability Data | MTTFd = 125 years high, DC > 99 %, PFHd = 2.89E-8 1/h |
| Certificate Agency | TÜV, RCM, cULus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2567735665694849, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 6.484450923226433 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-06-27 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2403017EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2411 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Data Storage Equipment | SD card optional) |
| Electrical Connection | spring terminal |
| Inductive Load | 2 mH |
| Load Capacitance | 0.82 µF |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | Yes |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; IT |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 61800-5-1 |
| Connections - Terminals | 6 captive spring terminals, removable terminal block |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 107.57 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2744.2 |
| Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] | 2.1432 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 15.498 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 3271.2 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2744.2 |
| Water Use (M3 Eq) Operational Energy Use [B6] | 3.5823 |
| Function Of Module | light curtain monitoring EN/ISO 14119, emergency stop ISO 13850guard monitoring EN/ISO 14119enabling switch monitoring IEC 60947-5-1light curtain monitoring IEC 61496-1, foot switch monitoring IEC 60947-5-1switch monitoring EN 574, two-hand control EN/ISO 14119safety mat monitoring IEC 61326-1, switch monitoring IEC 61800-5-2, muting function of light curtains IEC 61800-5-2, safety time delays, counter functions |
|---|---|
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1type 4 IEC 61496-1SILCL 3 IEC 62061 |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.030075801749271134, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2 kg CO2 eq., 0.1886977648202138 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 108 kg CO2 eq., 107.71 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Use Carbon Footprint | 107.71 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Short Name | XPSMCM |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Power Dissipation In W | 3 W |
| Product Or Component Type | safety controller CPU |
| Range Of Product | Modicon MCM |
| Service Life | 20 year(s) |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 115 kg CO2 eq. |
| Pep Code | ENVPEP2403017EN |
| Pep Verification Date | 2023-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To monitor safety sensor signals and provide data to a CPU at 3W during 10 years with a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Width Nominal | 45 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Maximum Number Of I/O Expansion Module | 14 128 input14 32.0 output |
| Package Weight(Lbs) | 358.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 107.71 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 1160 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 160.15 |
| Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] | 1.0492 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 526.96 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 526.96 |
| Customs Code | 8537109170 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2403017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2023-11-01 |
| Psr Version | 0 |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Carbon Footprint | 114.66999805636539 |
| Environmental Disclosure | ENVPEP2403017EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2403017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | safety controller CPU |
|---|
| Range Of Product | Modicon MCM |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Discrete Output Type | PNP or NPN, safety relay |
|---|---|
| Discrete Output Current | 400 mA |
| Number Of Outputs | safety outputs OSSD contactor/drive connection test line control outputs configurable diagnostic connection, 4 |
|---|
Input Attributes
| Discrete Input Type | safety input, NPN or PNP |
|---|---|
| Discrete Input Current | 400 mA |
| Number Of Inputs | 8 digital input connection4 digital interlock start/restart or external device monitoring |
| Synchronisation Time Between Inputs | < 0.5 ms, < 0.5 ms |
|---|---|
| Discrete Input Voltage | 24 V |
