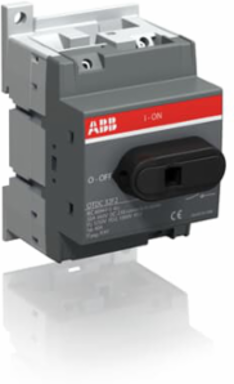

ABB OTDC32F2 OTDC32F2 DC Switch-disconnector
- MPN: OTDC32F2
- PPN: ABB-OTDC32F2
CAD
$192.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
OTDC32F2 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 660 VDC 32 A single circuit, IEC 1000 VDC 20 A single circuit
Specifications
Dimensions
- Product Frame Size
- XS
- Product Net Height
- 89 mm3.5 in
- Product Net Weight
- 0.14 kg0.31 lb
Product Net Width52.5 mm2.1 in
Product Net Depth / Length66.2 mm2.6 in
Technical
- Rated Operational Current DC-21B (Ie)
- (660 V) 32 A(1000 V) 20 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 45 A
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Short-Circuit Making Capacity (Icm)
- (1000 V DC) 0.8 kA
- Power Loss
- at Rated Operating Conditions per Pole 0.5 W
- Handle Color
- Black
- Positive Opening Operation Torque (Direct Opening Action)
- 0.4 … 0.8 N·m
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Operating Mode
- Front Operated
- Special Functions
- No
- Number of Circuits
- 1
- Cable Cross-Section
- 2.5 ... 16 mm²
- Terminal Type
- Screw Terminals
- Utilization Category
- Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 45 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Operational Voltage1000 V
Rated Short-time Withstand Current Low Voltage (Icw)(1000 V DC) 0.8 kAfor 1 s 0.8 kA
Pollution Degree3
Handle TypeKnob handle
Shaft Diameter6 mm0.24 in
Position of Line TerminalsTop In - Bottom OutBottom In - Top Out
StandardsIEC 60947-1, -3
Mounting TypeBase mounting, DIN-rail mounting
Number of Poles2
Degree of ProtectionFront IP20
UtilizationPhotovoltaic
Classifications
- Object Classification Code
- Q
- eClass
- V11.1 : 27371403
- E-Number (Finland)
- 3601357
ETIM 9EC000216 - Switch disconnector (low voltage)
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Sweden)3134022
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental InformationNA
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC301240D0201
Environmental InformationNA
RoHS Information1SCC301239D0201
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Estonia (EE)
Customs Tariff Number85363030
