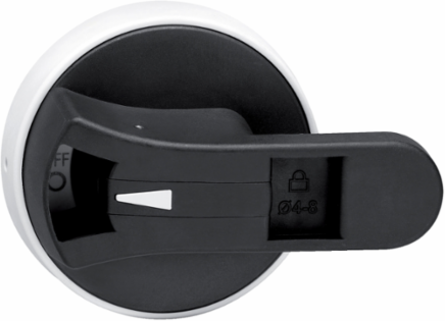

Schneider Electric VLSH3S7BD Disconnect switch, TeSys VLS, pistol grip handle, 70 mm diameter, screw mounting, black handle, 7 mm shaft, defeatable
Schneider Electric VLSH3S7BD Disconnect switch, TeSys VLS, pistol grip handle, 70 mm diameter, screw mounting, black handle, 7 mm shaft, defeatable
- MPN: VLSH3S7BD
- UPC: 785901577690
- PPN: SCH-VLSH3S7BD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$101.14/ EA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black pistol grip rotary handle will work with a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. Handle is defeatable per 60947-4-1. 7 mm shafts are used with this handle. The front plate is grey in color. Handle is mounted using four screws. Handle is marked 0 / OFF - 1 / ON. Handle is 2.99 inches tall, 4.08 inches wide and 2.98 inches deep. The handle weighs 0.31 lbs. This handle is NEMA 1, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
Specifications
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorgrey
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- Out
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1703
- China Rohs In Scope
- No
- Product Kit Identifier
- N
- Compatibility Code
- VLS
- Fixing Mode
- by 4 screws
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Tightening Torque
- 1.5 N.m
- Handle Front Plate Color
- grey
- Offer Owner Code
- 190788
- Height Nominal
- 76 mm
Local Publishable Date2025-12-09
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Base Dimension75 x 75 mm
Device Short NameVLSH
Marking0 - 1
Product Or Component Typerotary handle
ReturnabilityNo
Sustainable PackagingNo
Handle Colorblack
Warranty In Months18
Pn1
Width Nominal103.6 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP66
Nema Degree Of ProtectionNEMA 1, NEMA 4, NEMA 4X
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- rotary handle
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
Specifications
- Country of Origin
- Italy
Depth75.7 mm
