Leviton

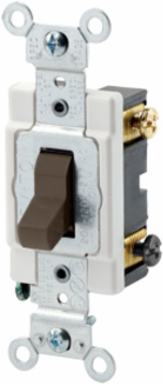

Leviton CSB2-20 20 Amp Toggle Switch, Double-Pole, Quiet, 120/277 Volt, Brown

20 Amp Toggle Switch, Double-Pole, Quiet, 120/277 Volt, Brown
  • MPN: CSB2-20
  • UPC: 078477240779
  • PPN: LEV-CSB2-20

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$7.73/ EA

Description

20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - Brown

Features

  • Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-1 & WD-6
UL Fed Spec WS896E
File #E7458
Warranty
10-Year Limited
CSA C22.2 No. 111File #152105
NOM057
UL StandardUL 20

Material Specifications

Actuator Material
Thermoplastic
Body Material
Thermoplastic
Contacts
Silver-Cadmium .031 Thick
Strap Material
Steel
Toggle
Polycarbonate
Base MaterialPBT
ColorBrown
Cover MaterialNylon
Terminal ScrewsSteel 8-32

Mechanical Specifications

Product ID
Stamped on Strap
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
Termination
Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Device Type
Toggle Switch
Grade
Commercial Specification Grade
FunctionDouble-Pole
Warranty10-Year Limited

Environmental Specifications

Flammability
Rated V-2 per UL94
Operating Temperature-40°C to 65°C

Electrical Specifications

Amperage
20 A
Max. Amperage
16 Amp
Voltage
120/277 VAC
Dielectric VoltageWithstands 1500V for 1 minute
Temperature RiseMaximum 30 degrees C rise

AC Horsepower Ratings

HP Rating
1HP-120V 2HP-240V-277V
