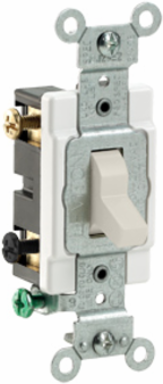

Leviton CS220-2T 20 Amp, Toggle Switch, Double-Pole, Quiet Switch, Heavy Duty Spec Grade
Leviton CS220-2T 20 Amp, Toggle Switch, Double-Pole, Quiet Switch, Heavy Duty Spec Grade
- MPN: CS220-2T
- UPC: 078477273067
- PPN: LEV-CS220-2T
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.09/ EA
Description
20 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Heavy Duty Specification Grade, Grounding, Side Wired - LIGHT ALMOND
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Specifications
Standards and Certifications
- Standards and Certifications
- UL/CSA
- Warranty
- 10-Year Limited
UL Fed Spec WS896EFile #E7458
Material Specifications
- Actuator Material
- Thermoplastic
- Color
- Light Almond
- Termination
- Side Wire
Body MaterialThermoplastic
Strap MaterialSteel
Mechanical Specifications
- Terminal Accom.
- 14-12 AWG
TerminationSide Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Toggle Switch
- Grade
- Commercial Specification Grade
FunctionDouble-Pole
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 65°C
Electrical Specifications
- Amperage
- 20 A
- Endurance
- 50,000 cycles minimum
- Max. Amperage
- 16 Amp
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Dielectric VoltageWithstands 1500V for 1 minute
GroundingGrounding
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Voltage120/277 VAC
AC Horsepower Ratings
- HP Rating
- 1HP-120V 2HP-240V-277V
