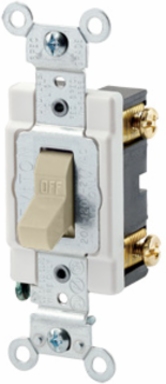

Leviton CSB1-20I 20 Amp Single-Pole Toggle Switch, 120/277 Volt, Ivory - Commercial Grade
- MPN: CSB1-20I
- UPC: 078477240274
- PPN: LEV-CSB1-20I
CAD
$8.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - Ivory
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL Fed Spec WS896E | File #E7458 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 111 | File #152105 |
|---|---|
| NOM | 057 |
| UL Standard | UL 20 |
Material Specifications
| Actuator Material | Polycarbonate |
|---|---|
| Body Material | Thermoplastic |
| Contacts | Silver-Cadmium .031 Thick |
| Strap Material | Steel |
| Toggle | Polycarbonate |
| Base Material | PBT |
|---|---|
| Color | Ivory |
| Cover Material | Nylon |
| Terminal Screws | Steel 8-32 |
Mechanical Specifications
| Product ID | Stamped on Strap |
|---|---|
| Terminal Accom. | 14-#10 AWG back wired; #14-#12 AWG side wired |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Device Type | Toggle Switch |
|---|---|
| Grade | Commercial Specification Grade |
| Function | Single-Pole |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -40°C to 65°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Max. Amperage | 16 Amp |
| Voltage | 120/277 VAC |
| Dielectric Voltage | Withstands 1500V for 1 minute |
|---|---|
| Temperature Rise | Maximum 30 degrees C rise |
AC Horsepower Ratings
| HP Rating | 1HP-120V 2HP-240V |
|---|
