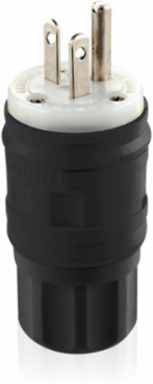

Leviton 14W33-B Wetguard Watertight Straight Blade Plug, 20 Amp, NEMA 5-20P, IP69K Rating
- MPN: 14W33-B
- UPC: 078477629956
- PPN: LEV-14W33-B
CAD
$29.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

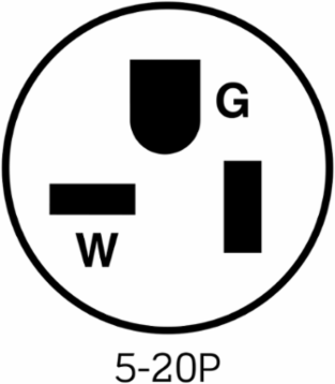

20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - BLACK
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
- WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
- UNIQUE DESIGN- Exclusive “tongue and groove” design provides superior ingress protection from water, dirt and debris
- HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
- THE BRAND YOU TRUST- Backed by a lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty
Material Specifications
- Assembly Screws
- Stainless Steel, Non-Magnetic
- Body Material
- Santoprene TPV
- Compression Nut, Strain Relief
- Nylon
Blades/ContactsElectroless Nickel-coated Brass
BushingSantoprene TPV
Terminal ScrewsElectroless Nickel-coated Brass
Mechanical Specifications
- Amperage
- 20 A
- Cord Range
- .375 - .655
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 125 VAC
Cord Grip Range (in).234-.687
Current LimitingFull Rated Current
GroundingGrounding
Product IDRatings and NEMA I.D. permanently marked on device
Terminal Accom.18-10 AWG
Torque Range12-14 in-lbs
Wire3
Product Features
- Brand
- Wetguard
- Device Type
- Straight Blade Plug
ColorBlack
Environmental Specifications
- Environment
- Wet
- IP Rating
- IP66, IP67, IP69K
FlammabilityRated V-2 per UL 94
Operating Temperature-40°C to 60°C
