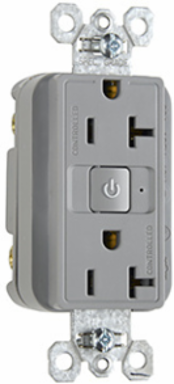

Pass & Seymour RF26352CDGRY 20A 125V Duplex Receptacle, Grey, 1.25 Inch Depth, 2.68 Inch Height, 1.73 Inch Width
Pass & Seymour RF26352CDGRY 20A 125V Duplex Receptacle, Grey, 1.25 Inch Depth, 2.68 Inch Height, 1.73 Inch Width
- MPN: RF26352CDGRY
- UPC: 785007040142
- PPN: P-S-RF26352CDGRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$139.48/ EA
Description
Energy savings and code compliance can be easily achieved through automatic plug load control via wireless RF communication between the Plug Load RF Signal Pack (RFP) and the Plug Load RF Receptacle.
Features
- Wireless control of plug load via RF communication and integral relay.
- Available in 'TP' series, extra 3/16 inch width and height than Standard size plates: and 'TPJ' series, extra 3/16 inch width and height than Junior-Jumbo size plates.
- Product meets requirements of UL498B: Receptacles with integral switching means.
- Binding button on face also serves as a manual override.
- Simple, three-step binding process for wireless communication with RF Single Pack
- Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- .032 inch think, brass, triple-wipe power contacts for lasting retention.
- LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
- Permanently molded face offers clear identification of controlled receptacle for end users.
Specifications
Specifications
- Depth
- 1.25 in
- Amperage
- 20.0 A
- Width
- 1.73 in
- Country of Origin
- China
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Dual-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Wire Connection Type
- Internal Pressure Plates
- Product Line
- Pass & Seymour
Height2.68 in
Voltage125.0 V
StandardFEDSPEC
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
ColorGray
