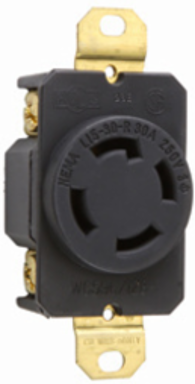

Pass & Seymour L1530R 30A NEMA L1530 Single Receptacle 4-Wire 250V, Black, 2.42 Inch Height
- MPN: L1530R
- UPC: 785007153057
- PPN: P-S-L1530R
CAD
$66.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30A NEMA L1530 Single Receptacle 4-Wire 250V, Black, 2.42 Inch Height
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.28 in
- Color
- Black
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Voltage
- 250.0 V
- Number of Wires
- 4.0
- Indoor/Outdoor
- Indoor
- Wire Size
- 14 - 10 AWG
- Features
- Impact Resistant
- Application Sector
- Industrial
- NEMA Configuration Code
- L15-30R
- Wire Connection Type
- Screw Terminals
- Special Features
- Locking Device, impact resistant
Height2.42 in
Width1.61 in
Amperage30.0 A
StandardUL 498
StandardFEDSPEC
Outlet TypeLocking
Number of Poles3-Way
Wall Plate IncludedNo
Number of Receptacles1.0
FeaturesBrass Mounting Strap
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
