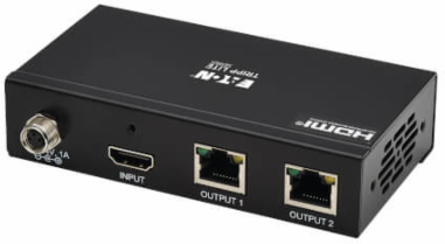

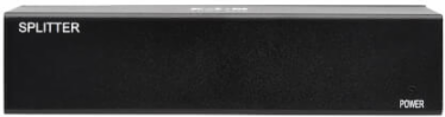

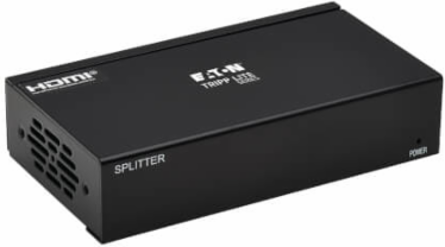

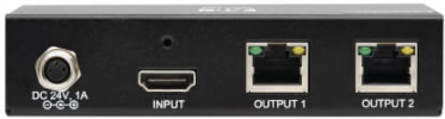

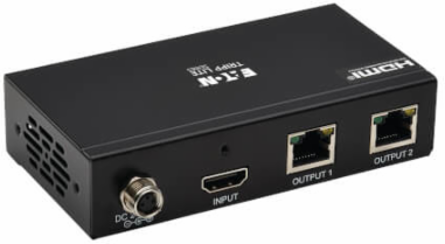

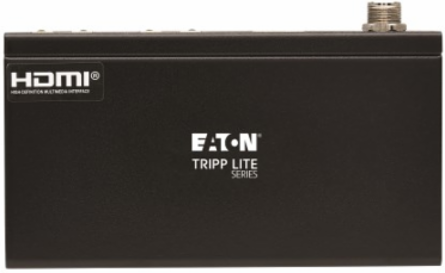

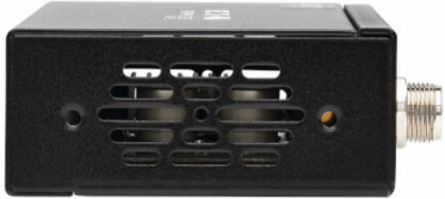

Tripp Lite B127A002BH 2-Port HDMI over Cat6 Splitter, 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft, TAA
- MPN: B127A002BH
- UPC: 037332263704
- PPN: TRP-B127A-002-BH
CAD
$186.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-Port HDMI over Cat6 Splitter - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
Features

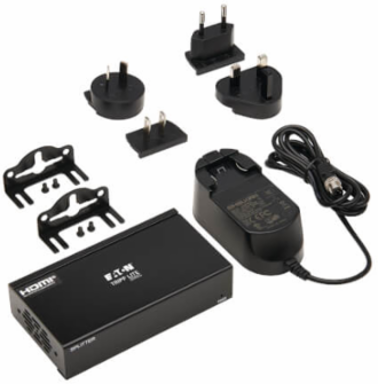

- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, U.K., Europe, Australia)
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
- Unit Dimensions
- 1.063 x 4.528 x 2.457 in
Material
- Material
- Metal
- Form Factor
- Box
ColorBlack
Compliance
- Product Warranty
- 1-year limited warranty
Reference
- Product Type
- Splitter
Recommended Cabling24AWG Cat6
Performance
- Max Supported Video Resolution
- 3840 x 2160 (4K x 2K) @ 60Hz
- Max Supported Color Depth
- 36-bit Deep Color
- Maximum Distance with Booster
- 400 ft
- HDCP Specification
- 1.4; 2.2
- Video Input
- HDMI (Female)
- Input x Output
- 1 x 2
- Daisy-chainable
- No
- AC Power Adapter Output
- 24V / 1A
- Receiver Power Source
- Power Over Cable
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
Chroma Subsampling4:4:4
Transmission Distance230 ft (70.1 m)
Audio SpecificationTrue uncompressed 7.1 Channel digital audio
TechnologyHDMI; Cat6; PoC
Video Output(2) RJ45 (Female)
Number of Monitors Supported2
AC Power Adapter Input100-240V / 50/60Hz / 0.6A
Power SourceTransmitter end only (Included)
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity0-85% non-condensing
