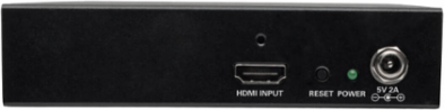

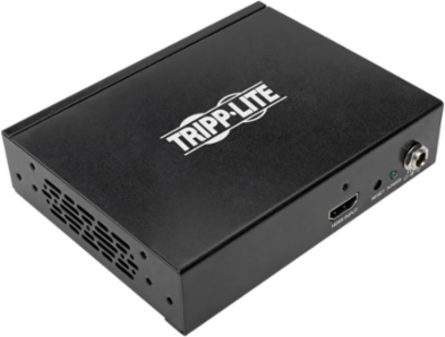

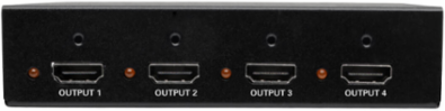

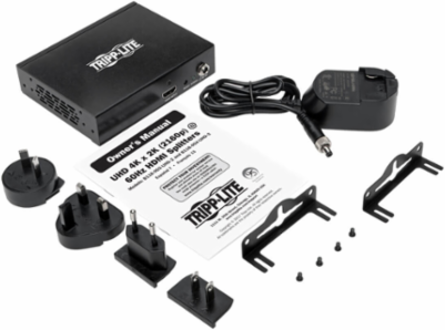

Tripp Lite B118-004-UHD-2 4-Port HDMI Splitter, 4K @ 60 Hz, HDR, HDCP 2.2
- MPN: B118-004-UHD-2
- UPC: 037332200655
- PPN: TRP-B118-004-UHD-2
CAD
$297.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time. Recommended for digital signage in classrooms, churches, office buildings, restaurants/bars, etc.
Features
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
- Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Expand the number of connected displays, up to 64, by cascading up to 3 levels of splitters together
- Plug and play—no software or drivers required
- 3-year limited warranty
- Transmits a 4K HDMI A/V Signal to 4 HDMI Displays Simultaneously
- Supports the Most Up-To-Date Features and Formats
- Easy to Use Almost Anywhere
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
| Max Supported Video Resolution | 3840 x 2160 @ 60 Hz |
|---|---|
| HDR Support | Yes |
| Audio Specification | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 Channel Surround Sound |
| HDCP Specification | 2.2 |
| Video Transmission Distance | 15 ft (4 m) |
| Material | Metal |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
| Power Supply Output | 5V, 2A |
| Rackmountable | Yes |
| Driver Required | No |
| Max Supported Color Depth | 36-bit Deep Color |
|---|---|
| 3D Video Supported | Yes |
| HDMI Specification | 2.0 |
| Ports | 4 |
| Connector Plating | Nickel |
| Color | Black |
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| Power Supply Input | 100-240V, 50/60 Hz, 0.35A |
| Power Supply Cord Length | 4 ft (1.2 m) |
| Compliance | TAA, CE, FCC, UL, cUL, TUV, CCC, PSE, C-Tick, GS, RoHS |
