Tripp Lite B118002UHDINT HDMI Splitter, 2-Port, 4K @ 30 Hz, HDCP 1.4, International AC Adapter
- MPN: B118002UHDINT
- UPC: 037332261304
- PPN: TRP-B118-002-UHDINT
CAD
$112.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

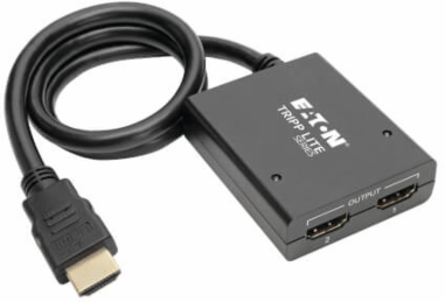

2-Port HDMI Splitter - UHD 4K, International AC Adapter
Features

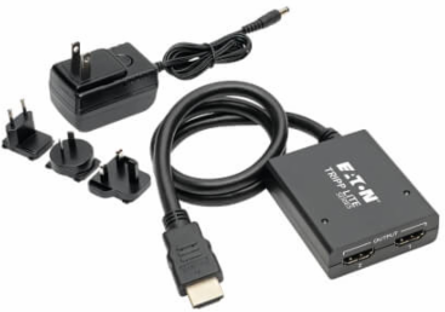

- External power supply (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)
- (4) International plug adapters included (North America, Europe, U.K., Australia)
- Owner's manual included
Documentation & Downloads
Specifications
Material
- Housing
- PVC
- Host Connector

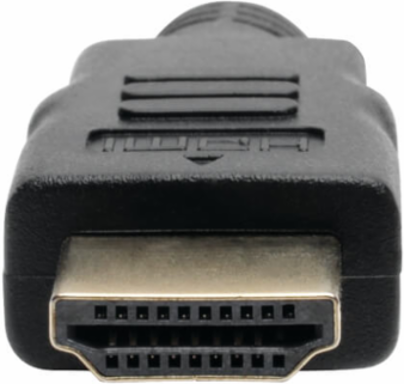

- HDMI (Male)
- Video Output
- HDMI (Female)
- Side B - Connector 1

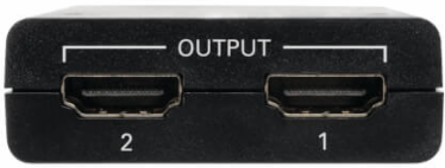

- (2) HDMI (Female)
- LED Indicators
- Red (Signal)
ColorBlack
Video InputHDMI (Male)
Side A - Connector 1HDMI (Male)
Connector PlatingGold
AC Power Adapter PlugAS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
Performance
- Max Supported Video Resolution
- 3840 x 2160 @ 30Hz
- Max Supported Color Depth
- 36-bit Deep Color
- HDCP Specification
- 1.4
- Technology
- HDMI
- Number of Ports
- 2
- Max Number of Ports (Cascadable)
- 128
- AC Adapter Input
- 100-240V / 50/60Hz / 0.2A
- Power Consumption
- 2.10 W
- Built-In Cable Length
- 1.64 ft
- Storage Temperature Range
- 14° to 176°F (-10° to 80°C)
- Storage Humidity Range
- 5% to 90% RH, Non-Condensing
HDR SupportYes
Audio SpecificationDTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound
Multi-Resolution SupportNo
Input x Output1 x 2
Max. Distance10 ft. (3.05m)
Power Source TypeAC Adapter
AC Adapter Output5V / 1A
Daisy-chainable / CascadableCascadable
Operating Temperature Range32° to 158°F (0° to 70°C)
Operating Humidity Range10% to 85% RH, Non-Condensing
Dimensions
- Unit Dimensions
- 2.280 x 1.970 x 0.670 in

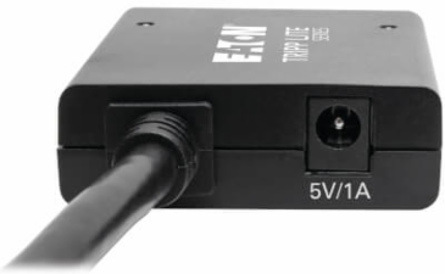

- DC Barrel Plug
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
Unit Weight0.33 lb
Reference
- Product Type
- Splitter
- Product Warranty Period
- 3-year limited warranty
Device CompatibilityMonitor/HDTV
