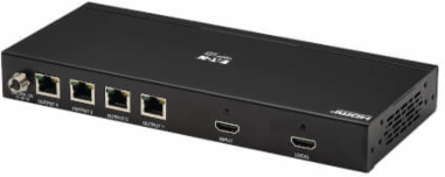

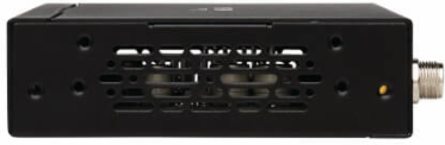

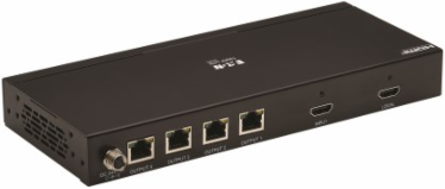

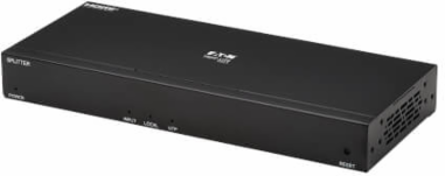

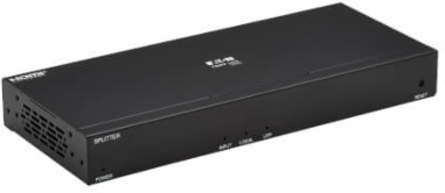

Tripp Lite B127A004BH 4-Port HDMI over Cat6 Splitter, 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft, TAA
- MPN: B127A004BH
- UPC: 037332263377
- PPN: TRP-B127A-004-BH
CAD
$342.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port HDMI over Cat6 Splitter - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
Features

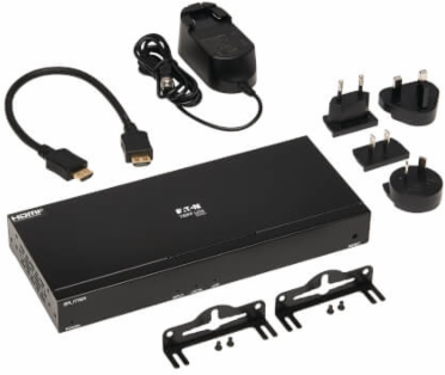

- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, U.K., Europe, Australia)
- Includes HDMI cable (M/M), 1 ft (0.3 m)
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
- Unit Dimensions
- 1.169 x 9.252 x 3.937 in
Material
- Material
- Metal
ColorBlack
Compliance
- Product Warranty
- 1-year limited warranty
Reference
- Product Type
- Splitter
Recommended Cabling24AWG Solid Wire Cat6
Performance
- Max Supported Video Resolution
- 3840 x 2160 @ 60Hz
- Max Supported Color Depth
- 36-bit Deep Color
- Audio Specification
- True uncompressed 7.1 Channel digital audio
- Technology
- HDMI; Cat6; PoC
- Video Output
- (4) RJ45 (Female)
- Number of Ports
- 4
- AC Power Adapter Input
- 100-240V / 50/60Hz / 0.6A
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-85% non-condensing
Chroma Subsampling4:4:4
Transmission Distance230 ft (70.1 m)
HDCP Specification1.4; 2.2
Video InputHDMI (Female)
Input x Output1 x 4
Daisy-chainableNo
AC Power Adapter Output24V / 1A
Storage Temperature Range5° to 122°F (-15° to 50°C)
