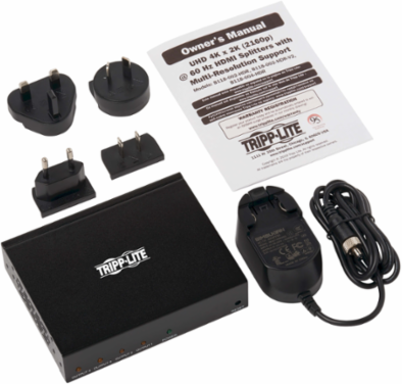

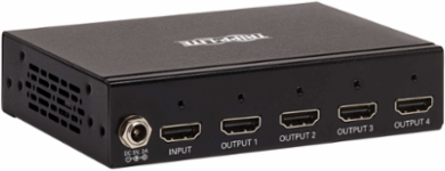

Tripp Lite B118-004-HDR 4-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, 4:4:4, Multi-Resolution Support, HDR, HDCP 2.2, TAA
Tripp Lite B118-004-HDR 4-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, 4:4:4, Multi-Resolution Support, HDR, HDCP 2.2, TAA
- MPN: B118-004-HDR
- UPC: 037332238023
- PPN: TRP-B118-004-HDR
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$253.03/ EA
Description
4-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, 4:4:4, Multi-Resolution Support, HDR, HDCP 2.2, TAA
Features
- Transmits up to 15 ft. for digital signage in bars, offices, classrooms, trade shows, etc.
- Supports UHD resolutions up to 4096 x 2160 (@ 60 Hz) for crystal-clear 4K x 2K video
- Supports multi-resolution output to allow for combination of different display types
- Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
- Capable of cascading up to 64 total displays in sophisticated applications
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- HDMI Splitter Transmits 4K Video + Audio to 4 HDMI Displays at the Same Time
- Supports UHD 4K x 2K Signals up to 15 ft. via HDMI Cabling
- Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
- Supports Up-To-Date Features and Formats
- Ready to Use Right Out of the Package
- TAA-Compliant for GSA Schedule Purchases
Specifications
Features & Specifications
- Max Supported Video Resolution
- 4096 x 2160 60Hz
- HDCP Specification
- 2.2
- Driver Required
- No
- EDID Compatible
- Yes
- Technology
- HDMI
HDMI Specification2.0
Audio SpecificationDTS-HD, Dolby TrueHD, Dolby Digial Plus, and LPCM 7.1 Channel Surround Sound
Max Supported Color Depth36-bit Deep Color
3D Video SupportedYes
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 10ft
Max Number of Ports (Entire Chain)64
Connections

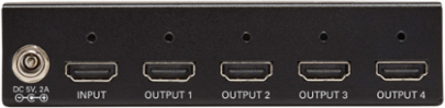

- Ports
- 4
- Side B - Connector 1
- (4) HDMI (FEMALE)
Side A - Connector 1HDMI (FEMALE)
Connector PlatingNickel
Physical
- Color
- Black
- Rackmountable
- Yes
- Unit Packaging Type
- Box
Material of ConstructionMetal
Unit Dimensions (hwd / in.)1.17 x 5.04 x 3.94
Unit Weight (lbs.)0.79
User Interface, Alerts & Controls

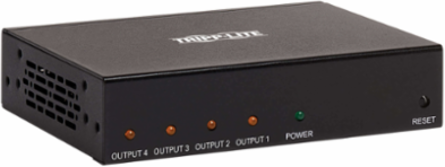

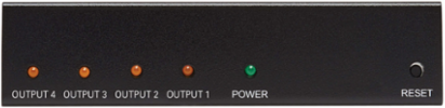

- LED Indicators
- (x1) Green (Power), (x4) Orange (Signal)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V, 2A
- External Power Supply Cord Length (m.)
- 1.2
- External Power Supply Plug(s)
- NEMA 5-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
- Bus Powered
- No
External Power Supply Input Specs (V / Hz / A)100-240V, 50/60HZ, 0.35A
External Power Supply Cord Length (ft.)4.0
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsCE; FCC; UL; cUL; TUV; CCC; PSE; C-Tick; GS; RoHS
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0% to 85% RH, Non-Condensing
Storage Temperature Range5 to 122 F (-15 to 50 C)
Overview
- UPC Code
- 037332238023
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
