Tripp Lite B118-008E-UHD-2 8-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, HDCP 2.2, EDID Management
Tripp Lite B118-008E-UHD-2 8-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, HDCP 2.2, EDID Management
- MPN: B118-008E-UHD-2
- UPC: 037332239907
- PPN: TRP-B118-008E-UHD-2
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$209.08/ EA
Description

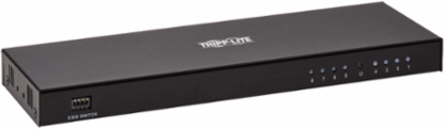

8-Port HDMI Splitter - HDMI 2.0, 4K @ 60 Hz, HDCP 2.2, EDID Management
Features
- Transmits up to 15 ft. for digital signage in bars, offices, classrooms, showrooms, etc.
- Supports UHD resolutions up to 4096 x 2160 (@ 60 Hz) for crystal-clear 4K x 2K video
- User-adjustable EDID settings allow compatibility with wide range of TVs/monitors
- Capable of cascading up to 512 total displays in sophisticated applications
- Plug-and-play operation with no software required for easy, immediate installation
- 3-year limited warranty
- HDMI Splitter Transmits 4K Video + Audio to 8 HDMI Displays at the Same Time
- Supports UHD 4K x 2K Signals up to 15 ft. via HDMI Cabling
- Supports Up-To-Date Features and Formats
- User-Adjustable EDID Settings Gives You Control over A/V Resolutions
- Ready to Use Right Out of the Package
Specifications
Features & Specifications
- Max Supported Video Resolution
- 4096 x 2160 @60Hz
- HDCP Specification
- 2.2
- Max Supported Color Depth
- 36-bit Deep Color
- Technology
- HDMI
HDMI Specification2.0
Audio SpecificationDTS-HD, Dolby® TrueHD, Dolby Digital Plus™ and LPCM 7.1 Channel Surround Sound
EDID CompatibleYes
Certifications
- Certifications
- Tested to FCC, RoHS, REACH
Port Expansion
- Max Distance (Between any 2 Units)
- 6ft. (2m)
Max Number of Ports (Entire Chain)512
Connections
- Ports
- 8
- Side B - Connector 1
- (8) HDMI (FEMALE)
Side A - Connector 1HDMI (FEMALE)
Physical
- Color
- Black
- Rackmountable
- Yes
- Shipping Weight (lbs.)
- 2.40
- Unit Packaging Type
- Box
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)3.30 x 5.90 x 13.90
Unit Dimensions (hwd / in.)0.87 x 3.19 x 10.35
Unit Weight (lbs.)1
User Interface, Alerts & Controls
- LED Indicators
- (x1) Amber (Power); (x8) Blue (Signal)
Input
- External Power Supply Input Specs (V / Hz / A)
- 100-240V~50/60Hz, 0.6A
- External Power Supply Cord Length (ft.)
- 4.9
- External Power Supply Plug(s)
- NEMA 1-15P North America
External Power Supply Output Specs (V / A)12V/2A
External Power Supply DC Barrel Connector SpecsOD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve
External Power Supply CertificationsUL; cUL
Environmental
- Operating Temperature Range
- 32 to 140°F (0 to 60°C)
- Relative Humidity
- 0% to 60% RH, Non-Condensing
Storage Temperature Range32 to 140°F (0 to 60°C)
Overview
- UPC Code
- 037332239907
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
