Tripp Lite PDUMH20HV 3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount, TAA
Tripp Lite PDUMH20HV 3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount, TAA
- MPN: PDUMH20HV
- UPC: 037332159014
- PPN: TRP-PDUMH20HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$475.36/ EA
Description
3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount, TAA
Features
- Metered single phase 16/20A 200-240V PDU
- 1U horizontal rackmount; Digital current meter

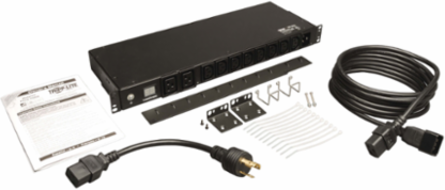

- C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
- 10 total outlets (8 C13, 2 C19)
- Reversible housing; 6.5 in. / 16.5 cm depth
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant, TAA compliant
Physical
- Form Factors Supported
- 1U rackmount. Includes mounting accessories for 2-4 post racks
- Minimum Device Depth (in.)
- 10
- PDU Form Factor
- Horizontal (1U)
- Shipping Weight (lbs.)
- 7.50
- Unit Weight (lbs.)
- 6.80
Material of ConstructionMetal
Minimum Required Rack Depth (inches)9.5
Shipping Dimensions (hwd / in.)2.20 x 11.60 x 20.40
Unit Dimensions (hwd / in.)1.75 x 17.5 x 6.5
User Interface, Alerts & Controls
- Front Panel LCD Display

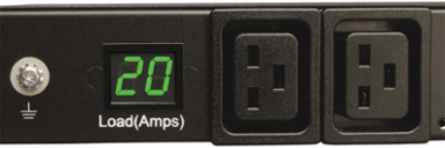

- Digital display reports total PDU output current in amps
Switchesn/a
Input
- PDU Input Voltage
- 200; 208; 220; 230; 240
- Maximum Input Amps
- 20
- PDU Plug Type

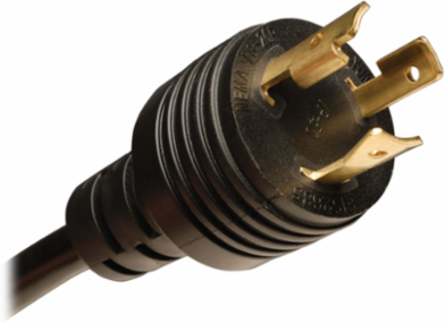

- NEMA L6-20P; IEC-320 C20
- Input Cord Details
- Includes 12 ft. / 3.6m C19 to C20 power cable and L6-20P plug adapter
Recommended Electrical Service20A 208/240V; 16A 230V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase
Input Cord Length (ft.)12
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) C13; (2) C19
- Overload Protection
- n/a
Output Capacity Details3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Output Nominal Voltage200; 208; 220; 230; 240
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332159014
PDU TypeMetered
Special Features
- TVSS Grounding

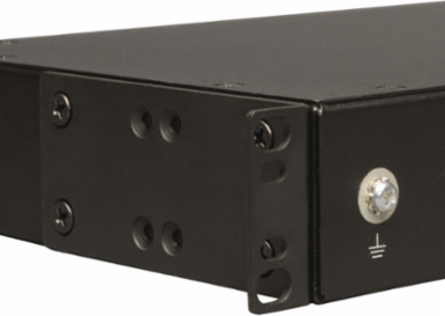

- Rear grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
