Leviton LDS30-RCC 30/32 Amp Non-Fused Disconnect Switch Replacement Cover Wi-Fi Monitoring
- MPN: LDS30-RCC
- UPC: 078477999462
- PPN: LEV-LDS30-RCC
CAD
$585.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

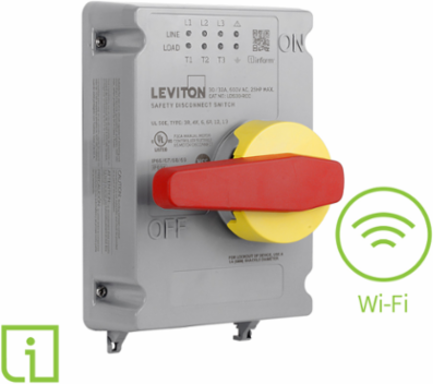

30/32 Amp 600 VAC Non-Fused Non-Metallic Disconnect Switch Replacement Switch with Local and Remote Monitoring Inform Technology. Remote monitoring communicated via Wi-Fi requires internet connection. Replacement cover comes with hardware to mount to existing Leviton LDS30 enclosure
Features
- High visibility LEDs provide visual confirmation of power being delivered to or removed from connected equipment (minimum 10 year LED lifespan)
- Inform app details voltage level readings for troubleshooting without exposing workers to live parts
- Equipment ground monitoring reduces shock hazard by validating the integrity of the ground connection
- This cover upgrades any standard Leviton LDS30 Disconnect to have Local and Remote Monitoring (via Wi-Fi) Inform Technology.
- How does Inform work? - Sensors are embedded into Leviton devices to monitor device health. Data from sensors can be viewed locally or remotely

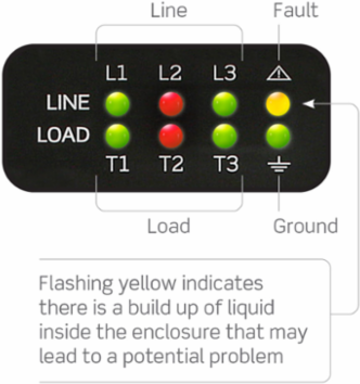

- Local monitoring – Green LEDs on the cover provide a visual indication that the device is operating under normal conditions, flash red if there is a failure, or flash yellow if there is a buildup of liquid inside of the enclosure that may lead to a potential failure

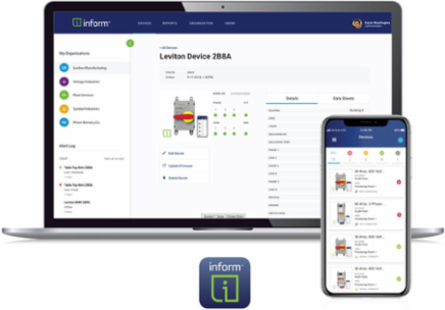

- Remote monitoring via Wi-Fi – includes data like liquid accumulation, enclosure temperature and humidity, line- and load-side voltage values, ground continuity, and more. Access this data 24/7 and get notified of any abnormal operating conditions via the Inform app (mobile and desktop) Compatible with Wi-Fi® 802.11 a/b/g/n networks @ 2.4GHz and 5GHz with WPA or WPA2 security. If using a variable frequency drive (VFD), it must be installed between the disconnect switch and the motor. Learn more about our Powerswitch industrial switch portfolio >> Learn more about Inform Technology >>
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Enclosure Material
- PBT+PC
- Handle Material
- PBT+PC with TPE Overmold
Enclosure ScrewsStainless Steel
Mechanical Specifications
- Accessory Type
- Replacement Cover
- Feature
- LED Indication, Wi-Fi Enabled
- Screw Terminal Torque
- 7 in-lb (0.8 N·m) for Switch/ 15 in-lb (1.7 N·m) for Neutral and Ground
Device TypeSafety Disconnect Switch
Product IDRatings are permanently marked on device
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Operating Temperature
- -40°C to 75°C
UV ResistanceExposed materials are UV stabilized
Electrical Specifications
- Amperage
- 30/32 A
Voltage600 VAC
