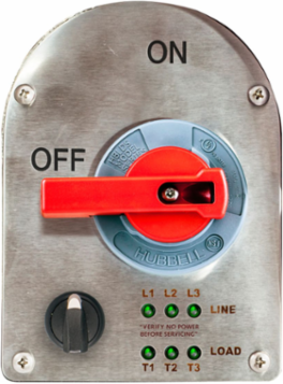

Hubbell Wiring Device-Kellems HBLDS6SSRRCPJ Stainless Steel Sloped Disconnect Switch, 60A, 10.5 Inch Width, LED Indicators
- MPN: HBLDS6SSRRCPJ
- UPC: 783585640440
- PPN: HBL-HBLDS6SSRRCPJ
- UNSPSC: 39122205
CAD
$1936.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SS SLOPED DISC,60A LED&JOG,4X REP COVER
Features
- Six highly visible integral phase identification LEDs for use on 3 Phase Y system
- Secondary confirmation of isolation of power
- Certified by NSF
- Integral jog switch allows communication to a PLC
- 15 degree sloped top support hygenic design
Documentation & Downloads
Specifications
Additional
- Width
- 10.5 in
- Max Voltage
- 600V AC RMS
- Short Circuit Current Rating
- 65kA RMS symmetrical, 600V AC max
- Conduit Hub Size
- 1 1/4 in
- Environmental Rating
- UL Witnessed IP69K, 4X, 12
- Impact Resistance
- UL 746C
- Country of Origin
- CN
Amperage60A
Dielectric Voltage3000V AC minimum
Operating Temperature Range-40 C to 75 C
MaterialPBT, Zinc, Galvanized Steel, Stainless Steel 300 Series, Neoprene, PC
Flammability RatingUL94-5VA and V0
CompliancecULus Listed, NSF
TypeAccessories
