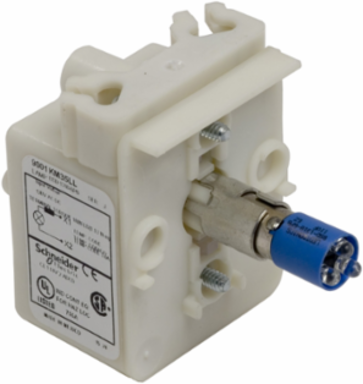

Square D 9001KM35LL 30mm Push Button, Types K, SK or KX, light module, blue LED lamp, 24/28 VAC/VDC
Square D 9001KM35LL 30mm Push Button, Types K, SK or KX, light module, blue LED lamp, 24/28 VAC/VDC
- MPN: 9001KM35LL
- PPN: SCH-9001KM35LL
- UNSPSC: 39121534
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.22/ EA
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a blue LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear lens cap. These light modules are UL Listed and CSA certified.
Specifications
Physical Attributes
- Light Block Color
- blue
Complementary Attributes
- US Rated Supply Voltage
- 24...28 V AC 50...60 Hz, 24...28 V DC
Important Information Attributes
- Product Or Component Type
- light module, light block
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Bulb Base
- BA 9s
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Package Weight Lbs
- 68.039 g
- Returnability
- No
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2503027EN
- Product Manager
- PRAVEEN DEEVARPALLI
Range Of ProductHarmony 9001K, Harmony 9001SK
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status5 - INITIALIZED WITH DataSCAN OK (Migration)
Device Short Name9001K
Light Block Supplydirect via integral resistance 0.28 VA
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Shock Resistance50 gn IEC 60068-2-27
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Relationship Typecross-selling relationship
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- IP Degree Of Protection
- IP10 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- light module, light block
Range Of ProductHarmony 9001K, Harmony 9001SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
