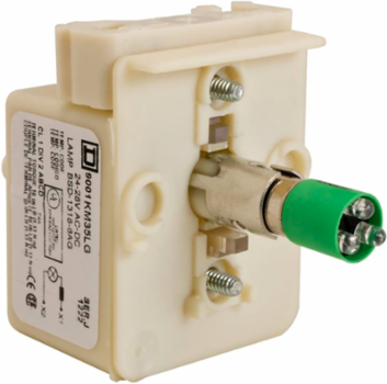

Square D 9001KM35LG Light module, light block, Harmony 9001K, Harmony 9001SK, Harmony 9001SK, 30mm, LED green, 24...28V
Square D 9001KM35LG Light module, light block, Harmony 9001K, Harmony 9001SK, Harmony 9001SK, 30mm, LED green, 24...28V
- MPN: 9001KM35LG
- UPC: 785901028956
- PPN: SCH-9001KM35LG
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$147.22/ EA
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- UL listed || CSA || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C || -40-158 °F
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C || -13-158 °F
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || JIS C 852
Key Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Device Short Name
- 9001K
Product Or Component Typelight module || light block
Bulb BaseBA 9s
Complementary
- Light Source
- LED (bulb included)
Light Block Colourgreen
