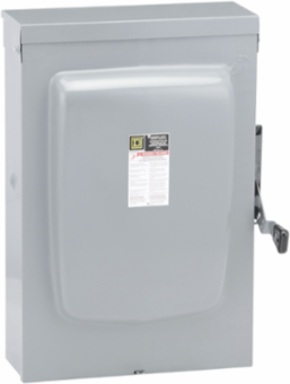

Square D CD225NR Safety switch, general duty, fusible, 400A, 120/240VAC, 2 poles, solid neutral, NEMA 3R
Square D CD225NR Safety switch, general duty, fusible, 400A, 120/240VAC, 2 poles, solid neutral, NEMA 3R
- MPN: CD225NR
- UPC: 785901204756
- PPN: SCH-CD225NR
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2329.66/ EA
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 400A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 10 AWG 6, aluminium/copper. This switch is certified to UL standards Dinemsions for this product are 30.63 in (H), 22.25 in (W), 10.13 in (D). General Duty safety switchs come with an 18 months warranty.
Specifications
Environment
- Product Certifications
- CSA
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Complementary
- Disconnector Device Type
- fusible disconnect
- Device Mounting
- surface
- Electrical Connection
- lugs
- Width
- 22.25 in
- Device Composition
- neutral (factory installed)
- Number Of Poles
- 2
Height30.63 in
Tightening Torque340-340 lbf.in AWG 1/0...250 kcmil)
Awg GaugeAWG 1/0...750 kcmil copper or aluminum
Depth10.13 in
Short-Circuit Current100 kA maximum cartridge
[Ue] Rated Operational Voltage120/240 V AC
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404026EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Specifications
- Series Name
- general duty
Product Or Component TypeSingle Throw Safety Switch
