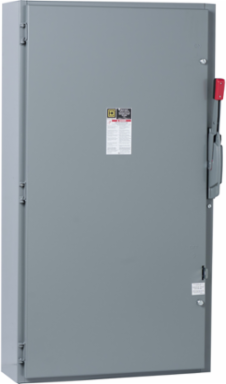

Square D CH365 Heavy Duty Fusible Safety Switch 400A 600V AC/DC 3 Poles NEMA 1
- MPN: CH365
- UPC: 785901181804
- PPN: SCH-CH365
- UNSPSC: 39122205
CAD
$2970.89
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power management, the heavy-duty fusible safety switch from Schneider Electric is designed to handle 400A at 600V AC/DC across three poles. This switch is essential for ensuring reliable disconnection and protection in various industrial applications, making it a critical component in power distribution systems. With its NEMA 1 enclosure rating, it provides adequate protection for indoor environments, ensuring safety and reliability in your electrical installations.
Features
- Engineered as a top-tier Square D by Schneider Electric heavy-duty fusible disconnect, this 3-pole (3PST) switch boasts a robust continuous current capacity of 400A. It is designed to act as a primary service entrance disconnect or high-capacity branch isolator, controlling incoming utility energy up to 600V AC or 600V DC.
- Built to withstand major operational stress, this switch manages heavy single-phase or three-phase electrical loads. It carries standard motor ratings of 50 hp at 240V DC and 100 hp at 480V AC, reaching a massive maximum rating of 350 hp at 600V AC and 50 hp at 250V/600V DC when deployed alongside dual-element time-delay fuses.
- The interior features Square D's premium visible-blade architecture. Driven by a spring-loaded, quick-make, quick-break mechanical actuator, the switch opens and closes completely independent of the operator's manual hand speed, preventing damaging contact arcing during critical power isolations.
- Housed in a heavy-duty NEMA Type 1 indoor steel box, this specific model features a premium surface-mount profile measuring 50.25 inches in height, 27.63 inches in width, and 10.13 inches in total depth. For industrial facilities running heavy-gauge wiring loops, the internal lugs accept massive feeder lines ranging from AWG 1/0 up to 750 kcmil copper or aluminum conductors at a high-torque rating of 550 lbf.in.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 10.13 in |
| Weight | 76600 g |
|---|
Complementary Attributes
| Line Rated Current | 400 A |
|---|---|
| Ue Rated Operational Voltage | 600 V AC/DC |
| Maximum Horse Power Rating | 350 hp at 600 V AC 50/60 Hz for 3 phase motors250 hp at 480 V AC 50/60 Hz for 3 phase motors125 hp at 240 V AC 50/60 Hz for 3 phase motors |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 125 hp at 600 V AC 50/60 Hz for 3 phase motors100 hp at 480 V AC 50/60 Hz for 3 phase motors50 hp at 240 V AC 50/60 Hz for 3 phase motors, 50 hp at 600 V DC, 50 hp at 250 V DC |
| Certificate Agency | CSA, UL listed file E154828 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 186 kg CO2 eq., 185.98877753753402 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 391 kg CO2 eq., 390.9752026692556 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | none |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Database Version | 2024-01 |
| Height Nominal | 50.25 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 90 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 550-550 lbf.in 53.49-380.0 mm² (1/0 AWG...750 kcmil), 550-550 lbf.in 53.49-152.0 mm² (1/0 AWG...300 kcmil) |
| Carbon Footprint Of The Distribution Phase A4 | 193.90740620263904, 194 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.1851821778485222, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 547 kg CO2 eq., 547.0206826529308 |
| Local Publishable Date | 2026-09-04 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1906 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 1/0 AWG...750 kcmil copper or aluminium |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 1 318 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 27.63 in |
| Customs Code | 8536509045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503029EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Halogene Performance | Halogen free plastic parts product |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1318.0772512402082 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
