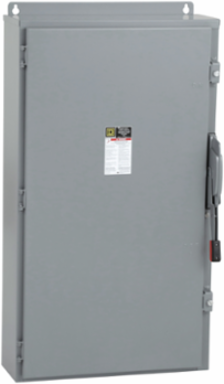

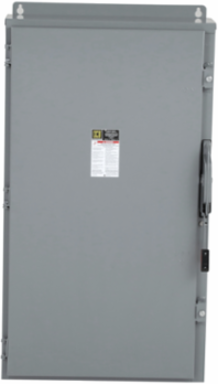

Square D CHU365AWK Heavy Duty Safety Switch 400A 600V AC/DC 3 Poles NEMA 12
- MPN: CHU365AWK
- UPC: 785901344629
- PPN: SCH-CHU365AWK
CAD
$3738.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered to handle demanding electrical environments, this safety switch is a robust choice for power distribution applications. With a capacity of 400A and the ability to operate at voltage levels up to 600V AC/DC, it ensures reliable service in heavy-duty settings. Its three-pole design adds to its versatility, making it suitable for various industrial setups. Additionally, the NEMA 12 rating provides dust-tight and drip-tight protection, enhancing durability and safety. This heavy-duty safety switch from Schneider Electric exemplifies a commitment to quality and reliability in electrical control systems.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Electrical Connection
- lugs
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
Product Or Component TypeSingle Throw Safety Switch
Complementary
- Height
- 46.25 in
- Tightening Torque
- 550-550 lbf.in AWG 1/0...750 kcmil)
- Awg Gauge
- AWG 1/0...750 kcmil copper or aluminum
- Depth
- 10.13 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
Device Mountingsurface
[In] Rated Current400 A
Width26.25 in
Device Compositionnone
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404026EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- CSA
Nema Degree Of ProtectionNEMA 3R/12 galvannealed steel
