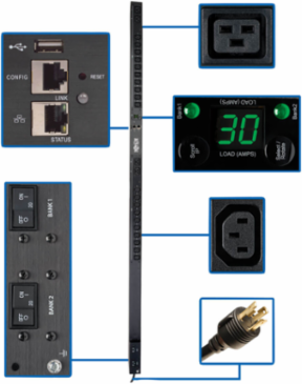

Tripp Lite PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
Tripp Lite PDUMNV30HVLX 5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA
- MPN: PDUMNV30HVLX
- UPC: 037332204479
- PPN: TRP-PDUMNV30HVLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1407.98/ EA
Description
Cost-effective 5/5.8kW PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in network interface helps monitor load levels to prevent overloads that cause downtime.
Features
- 5/5.8kW 208/240V 30A monitored PDU
- 24 outlets—20 C13, 4 C19—with cord retention brackets

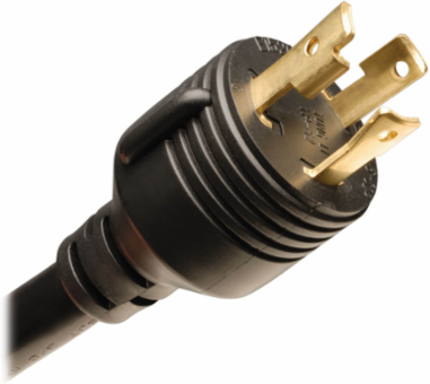

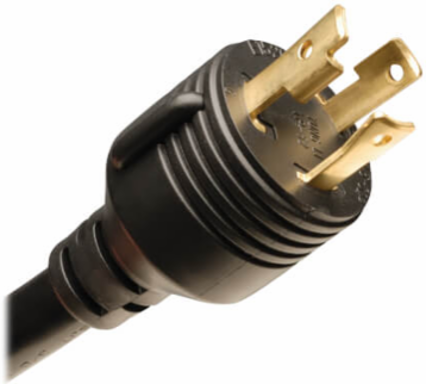

- NEMA L6-30P input with 10 ft. AC power cord
- Digital ammeter for on-site load monitoring in real time
- Built-in LX Platform interface for remote access
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL/CAN 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Compliant, TAA Compliant
Physical
- Form Factors Supported

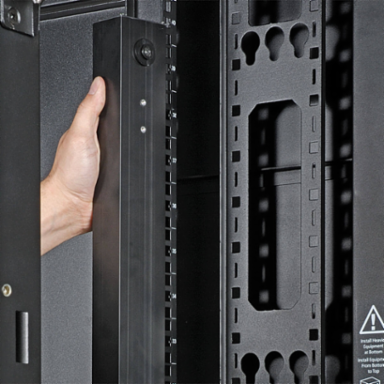

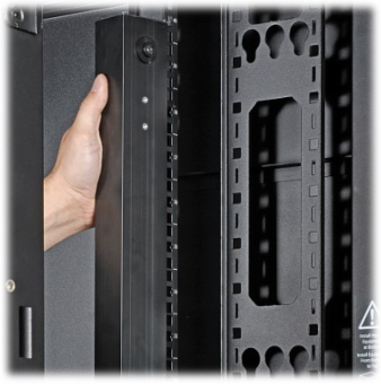

- 0U vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 14.60
- Unit Weight (lbs.)
- 11.5
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.00 x 6.30 x 73.20
Unit Dimensions (hwd / in.)70 x 2.2 x 2.65
User Interface, Alerts & Controls

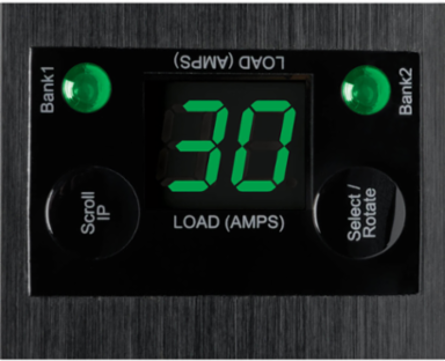

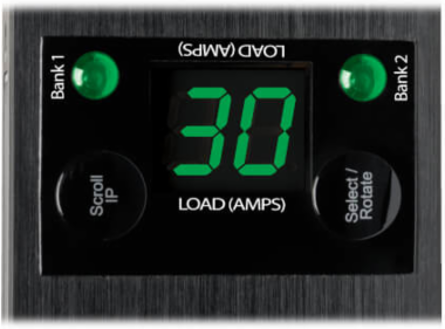

- Front Panel LCD Display
- Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
- Switches
- Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
Front Panel LEDsFront panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-12; Bank 2 LED indicates the meter is reporting load level for outlets 13-24; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Current Measurement Accuracy (Amps)+/-2%
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L6-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

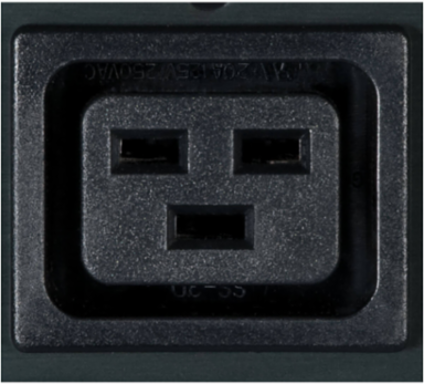

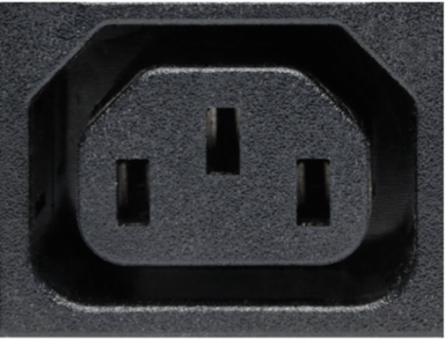

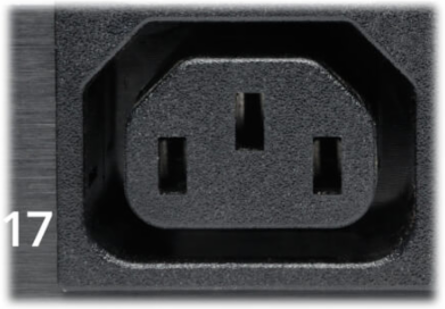

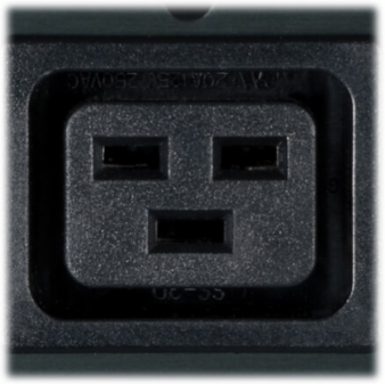

- (20) C13; (4) C19
- Overload Protection

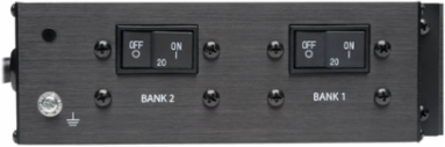

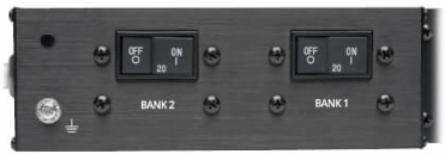

- Two 20A breakers protect 12 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Customized Load Management Receptaclesn/a
Communications
- SNMP Compatibility

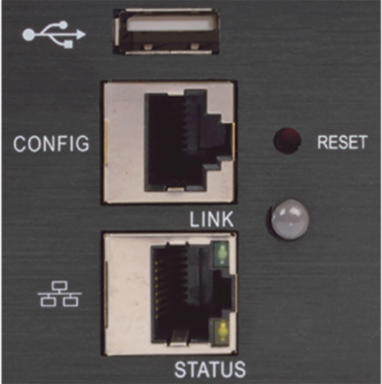

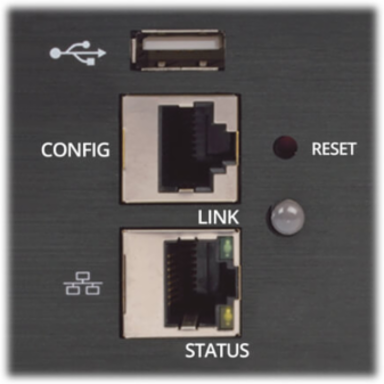

- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332204479
PDU TypeMonitored
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
