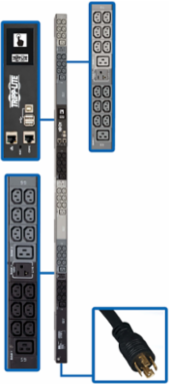

Tripp Lite PDU3EVN6L2120 5.8kW 3-Phase PDU, Vertical, Monitored, 0U with 36 IEC C13, 6 C19, 3 5-15/20R Plug Sockets - L21-20P Input

5.8kW 3-Phase PDU, Vertical, Monitored, 0U with 36 IEC C13, 6 C19, 3 5-15/20R Plug Sockets - L21-20P Input - https://media.province-electric.com/tripplite/2020q1/8bca54907f873349a1ef8605f89e5f81b99cb1dc-medium.png

5.8kW 3-Phase PDU, Vertical, Monitored, 0U with 36 IEC C13, 6 C19, 3 5-15/20R Plug Sockets - L21-20P Input

Tripp Lite PDU3EVN6L2120 5.8kW 3-Phase PDU, Vertical, Monitored, 0U with 36 IEC C13, 6 C19, 3 5-15/20R Plug Sockets - L21-20P Input

MPN: PDU3EVN6L2120
UPC: 037332206787
PPN: TRP-PDU3EVN6L2120

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1993.13/ EA

Qty:

Loading add to cart quantity...

Description

5.8kW 3-Phase PDU, Vertical, Monitored, 0U with 36 IEC C13, 6 C19, 3 5-15/20R Plug Sockets - L21-20P Input

Features

208V and 120V outlets distribute AC power to connected rack equipment
36 C13, 6 C19 and 3 NEMA 5-15/20R outlets split into 6 individually monitored load banks
Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access

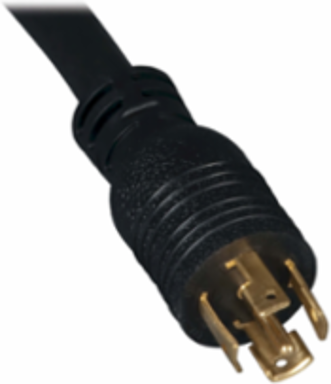

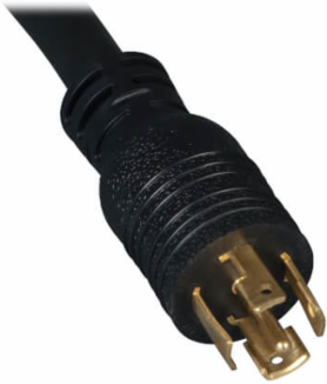

6 ft. (1.8 m) power cord with NEMA L21-20P input connects to compatible AC source

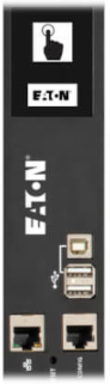

Color touchscreen LCD provides vital load and environmental data and network info
2-year limited warranty
3-Phase 0U PDU Distributes and Monitors Network-Grade Power
45 Outlets Dispense AC Power to Connected Equipment
Built-In LX Platform Network Management Card Allows Remote Access 24/7
Color Touchscreen LCD Offers Important Data at a Glance
Easy to Install Vertically in an EIA-Standard 19 in. Rack
TAA-Compliant for GSA Schedule Purchases
2-Year Warranty

Specifications

Certifications

Certifications: Tested to UL60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011+A2: 2014 (Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks

PDU Form Factor: Vertical (0U)

Unit Dimensions (hwd / in.): 70 x 2.17 x 2.52

Material of ConstructionSheet metal

Shipping Dimensions (hwd / in.)7.09 x 9.65 x 75.87

Unit Weight (lbs.)13.50

User Interface, Alerts & Controls

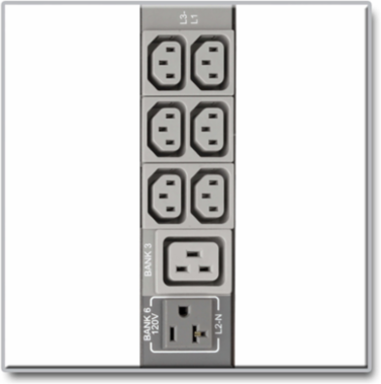

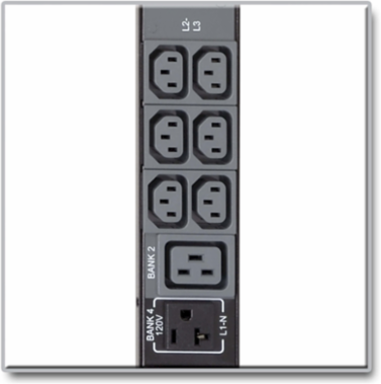

Reported Load Segments: Supports monitoring of input current per phase (L1, L2, L3) and output current for each output load bank (B1-B6); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets (B1); L2-L3 feeds dark-gray C13/C19 outlets (B2); L3-L1 feeds light-gray C13/C19 outlets (B3); L1-N feeds black 5-20R outlet (B4); L2-N feeds dark-gray 5-20R outlet (B5); L3-N feeds light-gray 5-20R outlet (B6)

Current Measurement Accuracy (Amps): +/-1%

Power Measurement Accuracy (Watts): +/-1%

Front Panel LCD DisplayTouchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)

Voltage Measurement Accuracy (Volts)+/-1%

Input

PDU Input Voltage: 208

Maximum Input Amps: 16

Input Phase: 3-Phase

Recommended Electrical Service20A 208V with NEMA L21-20R outlet

PDU Plug TypeNEMA L21-20P

Input Cord Length (ft.)6

Output

Frequency Compatibility: 50 / 60 Hz

Output Capacity Details: 5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3)
